Products Description

lathe

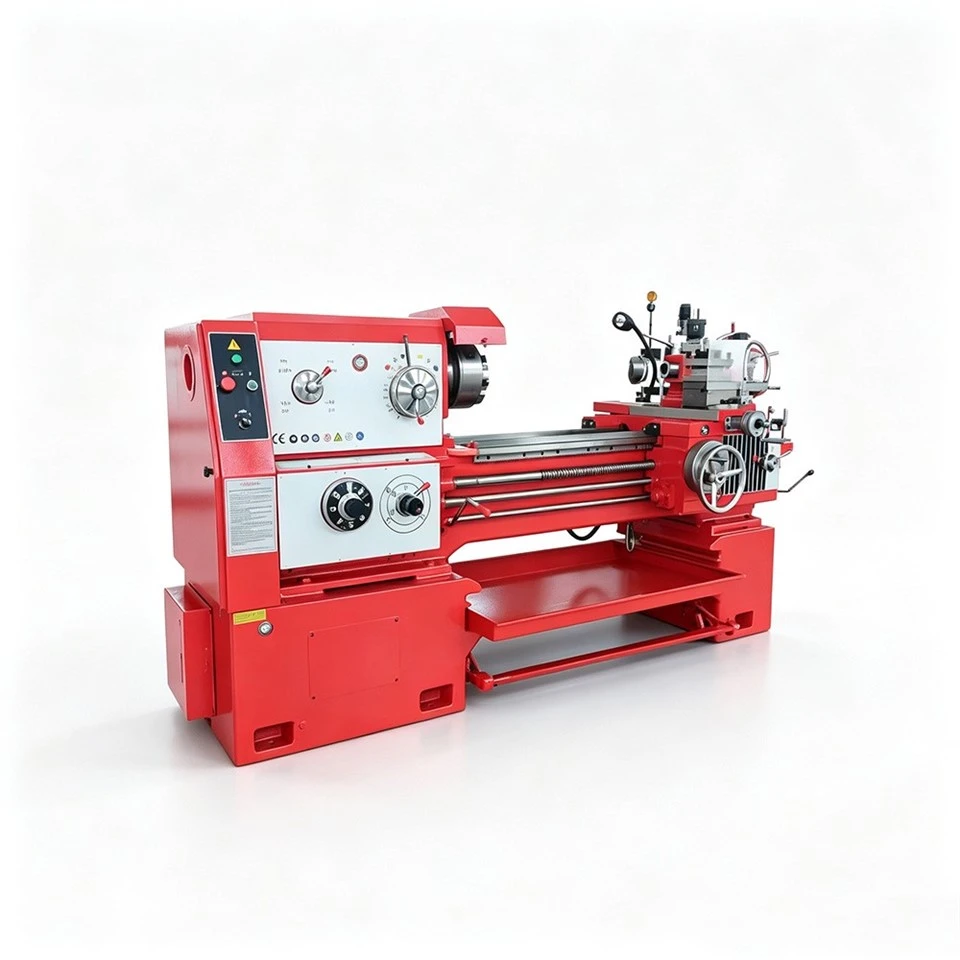

Manual lathe Machine Tools Conventional Precision Gap Bed Lathe Machine Metal Lathe

1. Chrome Molybdenum headstock gears are hardened and ground
2. Universal gearbox allows inch, metric, diametral, and module pitch threads without changing gears
3. High quality ANSI Class 50 waer-resistant bed ways are hardened and ground
4. Removable Gap allows up to larger diameter workpiece
5. Attractive chrome-plated control levers, dials and knobs complete this impressive package
6. D1-6 spindle is precisely ground for accuracy and supported by high quality spindle bearings
7. Large easy to use foot brake

Standard Accessories

3-Jaw Chuck & Wrench: 200mm
4-Jaw Chuck: 250mm
Dead Centers & Center Sleeve
Splash Guard / Rear Chip Guard
Chuck Guard & Tool Post Guard
Foot Brake System
Coolant System
Halogen Work Light
Tool Box & Maintenance Tools
English Operation Manual

Optional Accessories

2-Axis / 3-Axis Digital Readout (DRO)
Quick Change Tool Post (QCTP)
Face Plate
Steady Rest
Follow Rest
Live Center
Taper Turning Attachment (TTA)
Leadscrew Guard & Feed Rod Guard:
Turning Tools Set (Carbide Tipped)
Drill Chuck with Arbor
CE Standard Safety Electrics

lathe

SPECIFICATIONS	Units	C6140
Swingover bed	mm	400
Swing over cross slide	mm	230
Distance between centers	mm	750/1000/1500/2000/3000
Spindle bore	mm	52(opt.80)
Spindlebore taper	-	MT6
Spindle speed range	rpm	40-1400
Spindle speed steps	-	9
Crossslide travel	mm	200
Top tool posttravel	mm	95
Tool size	mm	20*20
Kindsof metric threads	kinds	19
Range of metric threads	mm	0.25-14
Kinds of inch threads	kinds	28
Range of inch threads	T.P.I.	2-40
Tailstock quilldiameter	mm	65
Main motor power	kw	4
Weightfor 1000	kg	1320
overall dimension	mm	240011401550

Main Products

Our main products are as below:
* CNC Vertical Machining center
* Vertical CNC Lathe Machine
* Horizontal CNC Lathe Machine
* Slant Bed CNC Lathe Machine
* Universal Lathe Machine
* Pipe Threading CNC Lathe Machine
* CNC Milling Machine
* Gantry milling machine
All the above products have passed CE, SGS certificates.

lathe

FAQ

1. What level of service do you provide ?
--->Your inquiry will be replied within 6 hours.

2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
We can Provide Technical support online service and Machine operation Video.
We can provide on-site training and commissioning Video.
We can Provide Spare parts replacement and repair service.
Give reasonable offers with the best quality.

3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).

4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us

5. What is the MOQ?
---->We usually provide 1 set for customers to test.

6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.

7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)

8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM
service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you
are from, we are looking forward to explore new market with you.
