Product Overview
The industrial milling machine is a heavy-duty sub-surface cutting platform engineered for high metal removal rates and sub-micron dimensional finishing. Built from Meehanite cast iron with finite element analysis (FEA) optimized internal ribbing, the structural bed dampens harmonic vibrations caused by interrupted cutting. Hardened box ways on heavy roughing variants or high-dynamic linear guideways on speed-focused configurations maintain geometric stability under continuous multi-axis loads.
-
![Universal Knee-type Milling Machine]()
Universal Knee-type Milling MachineCE Certificated: Ensures safety and reliability for long-term use.view more
Medium Duty: Suitable for heavy-duty applications requiring robust performance.
Vertical Travel Z: 460/450 mm:... -
![XA7140 Bed Type Milling Machine]()
XA7140 Bed Type Milling MachineTable size: 1400*400mmview more
Longitudinal travel X axis: 1000mm
Cross travel Y axis: 400mm
Vertical travel Z axis: 500mm
Spindle taper: ISO50
Spindle power:... -
![Cnc Milling Machining Center]()
Cnc Milling Machining CenterFeatures:view more
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling... -

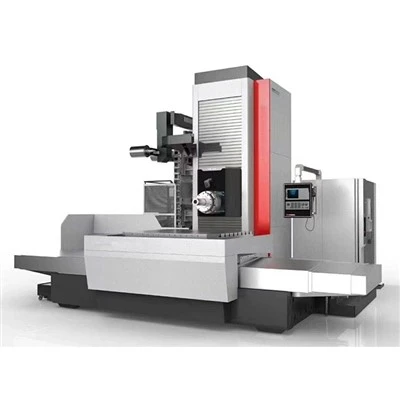

![Automatic Boring And Milling Machine]()
Automatic Boring And Milling MachineSolvable processingview more
1. Vertical drilling: Vertical drills are used to finish the processing of the vertical holes.
2. Horizontal drilling: Horizontal drills are used to finish... -
![Automatic Gantry Machining Center]()
Automatic Gantry Machining Centertype：VERTICALview more
table travel (x) (mm):3200
table travel (y) (mm):2200
table travel (z) (mm):800
positioning accuracy:0.01
repeatability (x/y/z) (mm):0.005... -
![Small Vertical Machining Center]()
Small Vertical Machining CenterModel：vmc850view more
number of axes：3
table travel (x) (mm)：1000
table travel (y) (mm)：500 table travel (z) (mm)：500 -
![Vertical CNC Milling Machine]()
Vertical CNC Milling MachineModel：vmc1160view more
table travel (x) (mm)：1100
table travel (y) (mm)：600
table travel (z) (mm)：600
repeatability (x/y/z) (mm)：±0.003
positioning accuracy：±0.005 -
![Horizontal Boring Milling Machine]()
Horizontal Boring Milling MachineProducts Description The machine tool has high positional accuracy, smooth chip removal, and is suitable for high-speed and high-precision machining. It is equipped with a precision power head....view more -
![Universal Milling And Boring Machine]()
Universal Milling And Boring MachineModel Number: TPX6113Aview more
Spindle diameter：130mm
Spindle range of spindle：4-800r/min -
![Milling Boring Machine]()
Milling Boring Machinetype：Horizontalview more
max. length of workpiece (mm)：1400
positioning accuracy (mm)：±0.01
repeatability (x/y/z) (mm)：±0.005 -
![Cnc Boring Milling Machine]()
Cnc Boring Milling Machinecnc or not：CNCview more
spindle motor power(kw)：15
number of axes：4
no. of spindles：4 -
![CNC Vertical Machining Center]()
CNC Vertical Machining Centermodel：vmc650view more
table travel (x) (mm)：650
table travel (y) (mm)：400 mm
able travel (z) (mm)：500 mm
Key Features
Ribbed Meehanite Casting
One-piece structural bed subjected to stress-relief annealing and thermal seasoning, preventing structural warping under thermal and mechanical load.
Precision Spindle Cartridge
Ceramic-hybrid angular contact bearings deliver up to 12,000 RPM with constant torque delivery and minimal thermal growth during extended cutting cycles.
Closed-Loop Thermal Compensation
Real-time sensors track ball-screw elongation and spindle expansion, feeding compensation data directly into the CNC controller to hold tight tolerances.
Optimized Chip Management
Dual-auger trough design combined with a high-flow bed flushing system prevents chip accumulation and subsequent thermal distortion in the work zone.
Machining Capabilities
Milling Operations
Face milling, pocketing, profile contouring, and helical interpolation with surface roughness achievable down to Ra 0.4 um.
Hole-Making
Rigid tapping up to 6,000 RPM and deep-hole peck drilling supported by a 30-to-70 bar through-spindle coolant system.
Boring
Fine boring of engine blocks and transmission housings, holding concentricity tolerances within +/-0.005 mm.
Material Compatibility
Structural carbon steels, alloy steels (4140, 4340), stainless steels (304, 316), cast iron, aluminum alloys (6061, 7075), and titanium.
Machine Configuration
|
Travel (X / Y / Z) |
1,000 mm x 500 mm x 550 mm (extendable up to 3,000 mm on bed-type models) |
|
Table Dimensions |
1,200 mm x 500 mm |
|
Max Table Load Capacity |
800 kg evenly distributed |
|
Spindle Taper |
BT40 / BBT40 / HSK-A63 |
|
Spindle Motor Output |
11 kW / 15 kW (Continuous / S6-40%) |
|
Rapid Traverse Speeds (X/Y/Z) |
36 / 36 / 30 m/min |
|
Automatic Tool Changer (ATC) |
24-station arm-type magazine (optional 32/40 stations) |
|
CNC Control Unit |
Fanuc 0i-TF Plus or Siemens SINUMERIK 828D |
Mold & Die: Milling P20 and H13 tool steel cavity plates with complex 3D surfaces and steep draft angles.
Automotive Production: Machining transmission housings, brackets, and structural chassis components under tight cycle time requirements.
Job Shop Contract Machining: Processing low-to-medium batch structural steel plates, industrial valves, and custom flanges.
Energy Sector: Fabricating valve bodies and actuator components from high-nickel and corrosion-resistant alloys.
Evaluate Material and Cut Type: Select box-way configurations for heavy, deep-cut roughing on tough alloy steels; choose linear guideways for high-speed dynamic contouring of aluminum.
Size the Envelope: Ensure X/Y/Z axis travel provides at least 20% clearance space beyond maximum raw stock dimensions to ensure safe clamp and tool clearance.
Select the Control System: Standardize on Fanuc for universal operator familiarity across standard job shops; choose Siemens for advanced shop-floor conversational programming and complex interpolation.
Audit Shop Utilities: Verify factory floor power availability (3-phase 380V/440V, 50/60Hz), compressed air pressure (>= 0.6 MPa), and concrete foundation thickness.
Cast Iron Seasoning: Raw castings undergo 90 days of natural aging followed by thermal stress-relief annealing to stabilize the metal structure.
Cleanroom Assembly: Ball screws and linear guides are laser-aligned and pre-tensioned inside a temperature-regulated assembly environment (20 deg C).
Laser Interferometric Testing
Axis positioning and bidirectional repeatability are verified against ISO 230-2 standards using Renishaw laser measurement systems.
Ballbar Circularity Verification
Dynamic servo alignment and mechanical backlash are tested across all plane quadrants to ensure geometric interpolation accuracy.
Factory Dry-Run
Fully assembled machines undergo a 72-hour continuous thermal dry-run test before final sign-off and crating.
Optional Configuration
4th / 5th Axis Indexing Tables: Tilting rotary tables for multi-face and simultaneous multi-axis machining capabilities.
Through-Spindle Coolant (TSC): High-pressure filtration modules rated at 30 bar or 70 bar for deep drilling applications.
In-Machine Probing Systems: Renishaw optical tool setters and workpiece touch probes for automated zero-point setting and wear compensation.
Chip Conveyor Systems: Hinge-type or scraper-type chip removal systems paired with independent coolant settling tanks.
Enclosure Interlocks: Full splash guard sheet metal enclosures equipped with pneumatic safety door interlocks.
