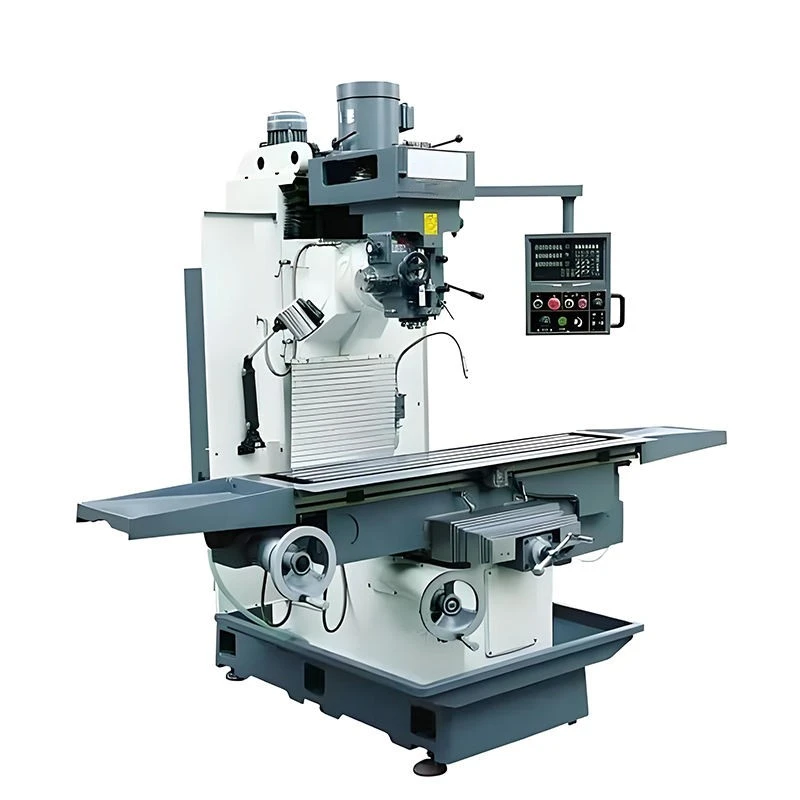

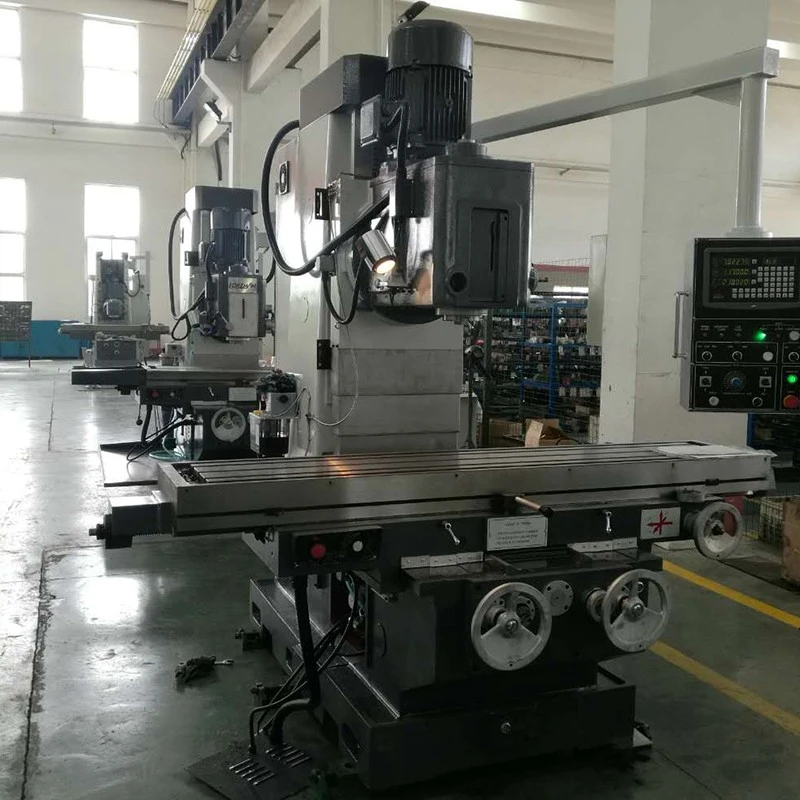

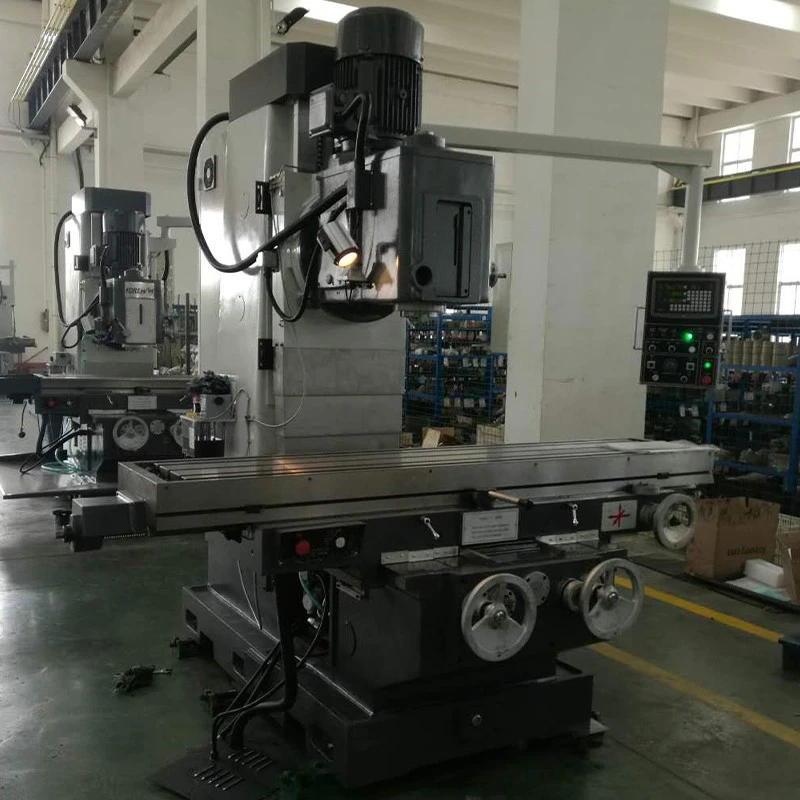

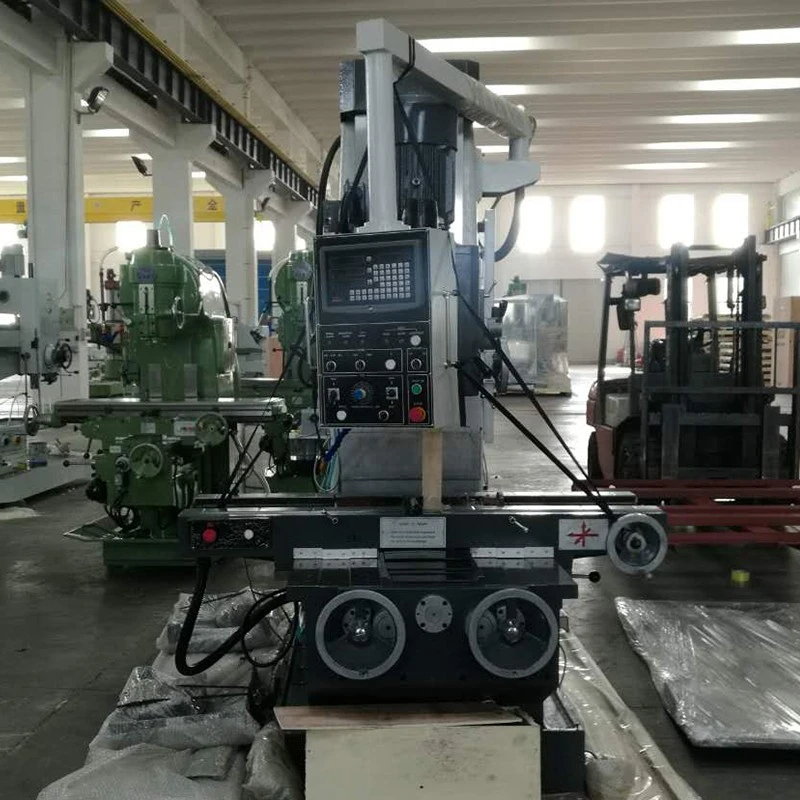

XA7140 bed type milling machine is classified as a general-purpose machine, XA7140 bed type milling machine is primarily designed for processing materials such as various metals, plastics, and wood. It accommodates a wide range of cutters-including cylindrical, disc, angle, form, and end mills-to machine surfaces, inclined planes, grooves, and gears. Optional accessories, such as a universal dividing head, can be added to expand its machining capabilities.
The Features of the XA7140 bed type milling machine
1: The machine features high rigidity, enabling it to withstand heavy-duty cutting operations.
2: Equipped with a high-power spindle motor and a wide speed range, it maximizes cutting tool efficiency and supports high-speed cutting.
3: Wear-prone castings are made of wear-resistant vanadium-titanium cast iron, while critical components utilize high-quality alloy steel, ensuring stability and durability.
Technical Specifications
|
Specification |
Unit |
XA7140 |
|
TABLE |
||
|
Table size |
mm |
1400x400 |
|
T slot |
no |
3 |
|
T slot size ( Width ) |
mm |
18 |
|
T slot centre distance |
mm |
100 |
|
Max. load of Table |
kg |
800 |
|
MACHINING RANGE |
||
|
X axis Longitudinal travel |
mm |
1000 |
|
Y axis Cross travel |
mm |
400/360(带数显) |
|
Z axis Vertical travel |
mm |
150-650 |
|
MAIN SPINDLE |
||
|
Spindle taper |
ISO50 |
|
|
Quill travel |
mm |
105 |
|
Spindle speed /step |
rpm |
18-1800/无级 |
|
Spindle axis to column surface |
mm |
520 |
|
Spindle nose to table surface |
mm |
150-650 |
|
FEEDS |
||
|
Longitudinal/cross feed and step |
mm / min |
18-627/9 |
|
Vertical feed and step |
18-627/9 |
|
|
Longitudinal/cross rapid speed |
mm / min |
1670 |
|
Rapid Traverse vertical |
1670 |
|
|
POWER |
||
|
Main motor |
kw |
7.5 |
|
Feed motor |
kw |
0.75 |
|
Elevating motor for headstock |
Kw |
0.75 |
|
Coolant motor |
kw |
0.04 |
|
OTHERS |
||
|
Overall dimension |
cm |
229x177x212 |
|
Machine weight |
kg |
3860 |

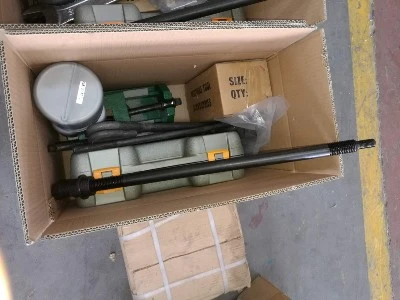

Packing list
|
No . |
Name |
Model |
Qty. |
|
1 |
Mill machine |
XA7140 |
1 |
|
2 |
Mill chuck |
1 set |
|
|
3 |
Inner-hexagon panner |
5,12 |
1 |
|
4 |
Middle-sleeve |
ISO50-MT4,MT4-MT3,MT4-MT2 |
1 |
|
5 |
Draw bar |
M24,M16, M12,M10 |
1 |
|
6 |
Wrench |
S16-18,S21-24, S32-36 |
1 |
|
8 |
Shell end mill arbors |
1 |
|
|
9 |
Foundation bolt |
M20 |
6 |
|
10 |
Nut |
M24 , M20 |
4,6 |
|
11 |
Washer |
20 |
6 |
|
12 |
Wedge shifter |
6 |
|
|
13 |
Operation manual |
1 |
|
|
14 |
Quality certificate |
1 |
|
|
15 |
Packing list |
1 |
|
|
16 |
Transducer instruction |
1 |
