Products Description
Crankshaft Grinding Machine mainly suitable for grinding the main and connecting rod necks of crankshafts in automobiles,tractors, and diesel engine repair shops, and can also be used for outer circle grinding of various shaft parts (cut in grinding,longitudinal grinding)

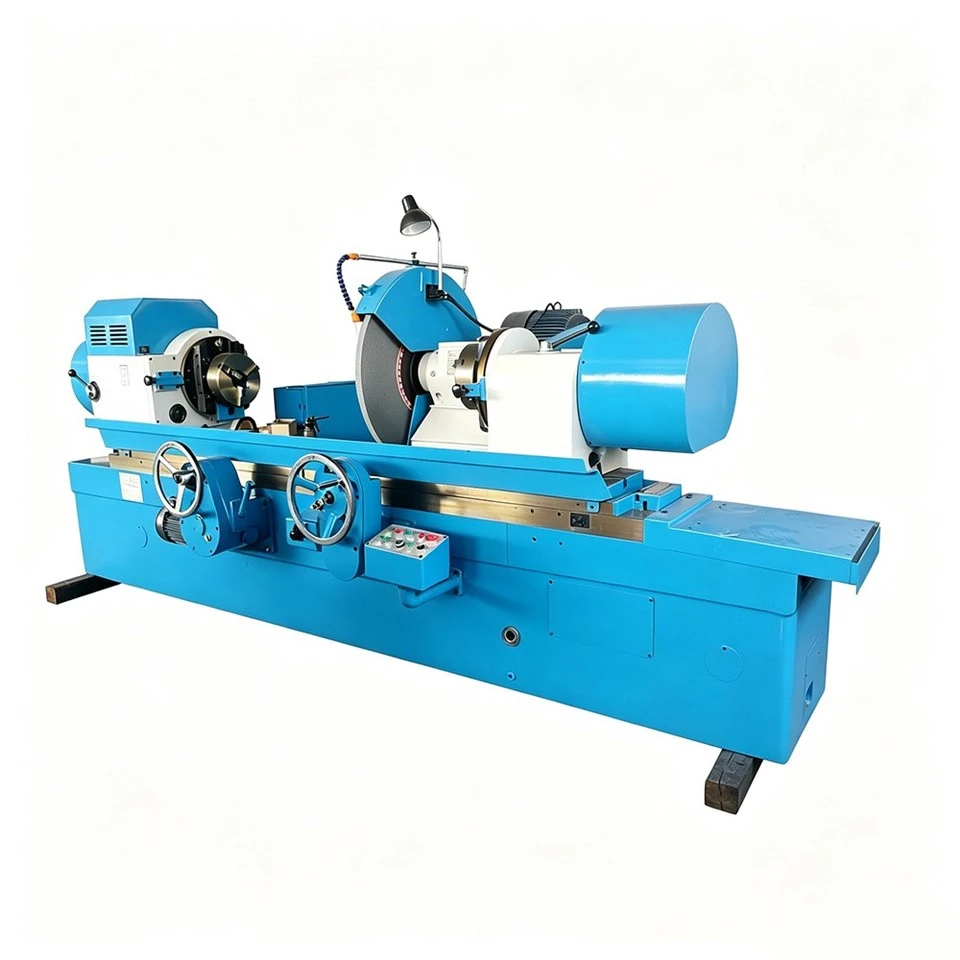

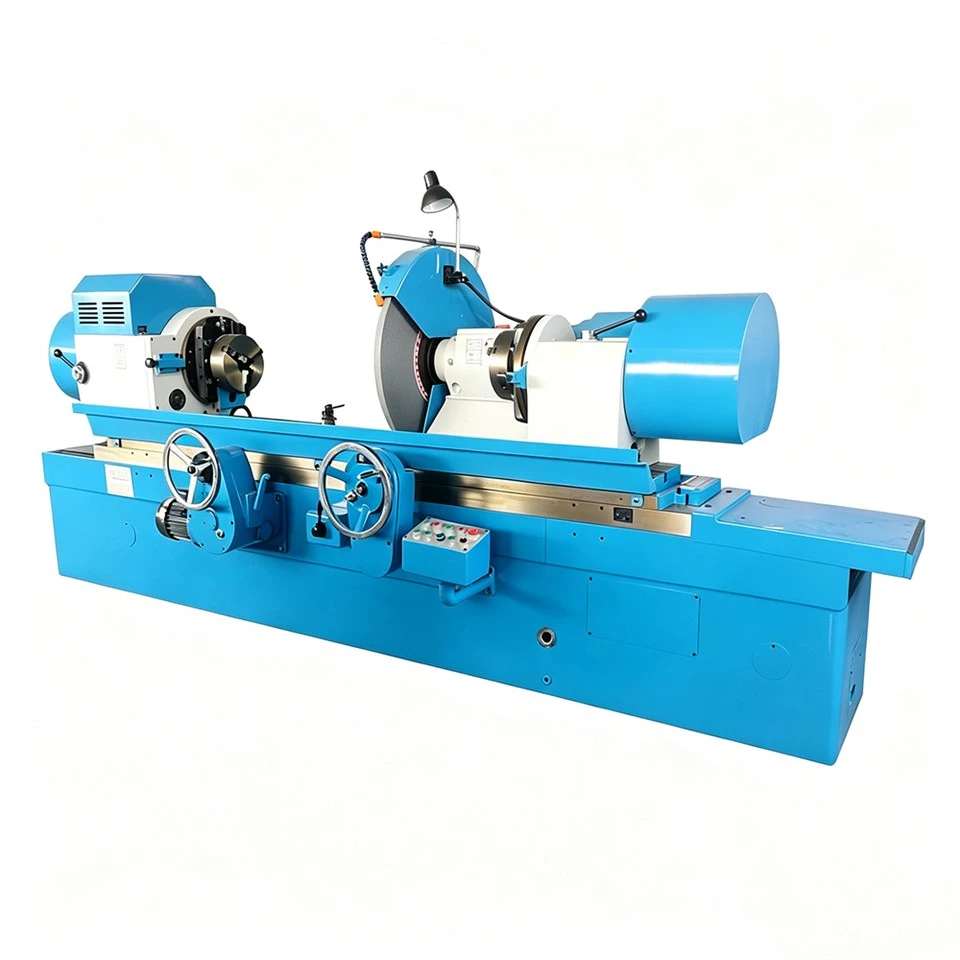

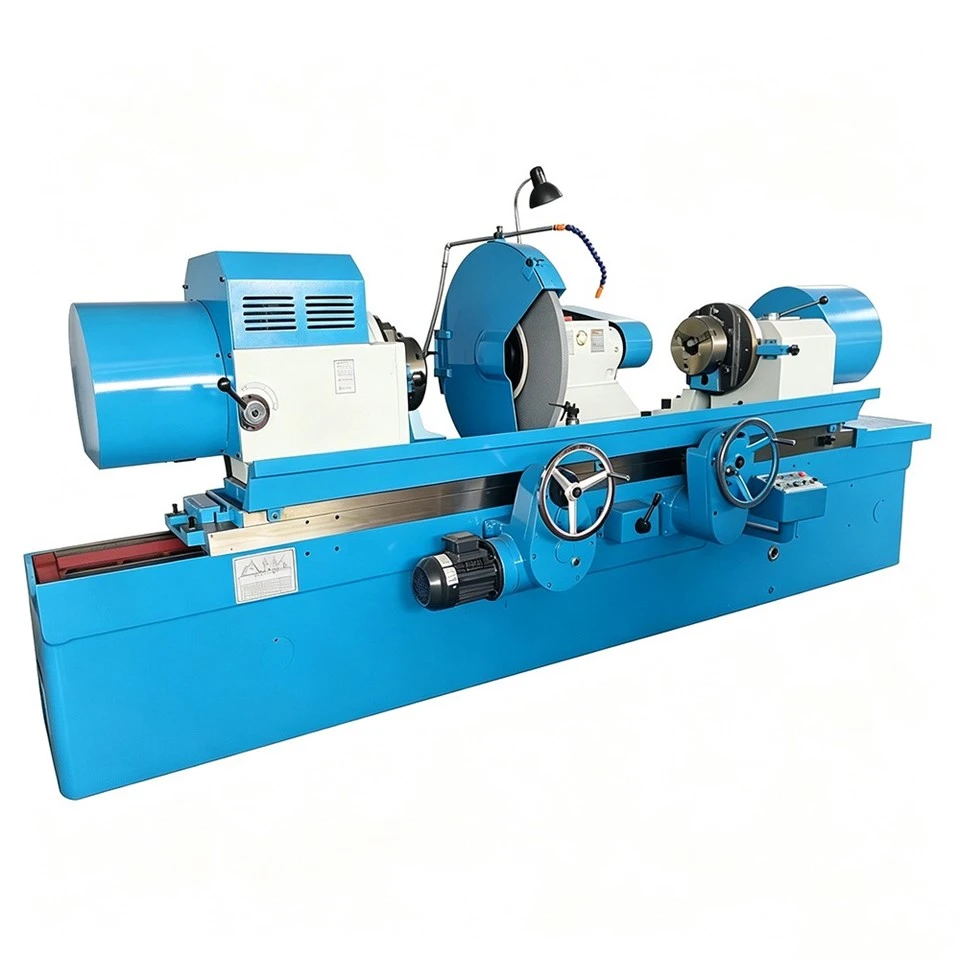

Crankshaft Grinding Machine
1.Vertical movement of the workbench, separation of movement and maneuverability.
2.The lubrication of the bed guide rail and grinding wheel frame is automatically circulated through the oil pump.
The longitudinal movement of the workbench can be done manually or hydraulically. Hydraulic drive is mainly used for longitudinal grinding of outer circles and facilitates faster movement when grinding the next curved shaft neck;
High-Precision Motor Drive: Ensures precise and efficient grinding operations.
11kW Power: Delivers robust performance for heavy-duty tasks.
Cross Chuck Adjustment: Provides versatile workpiece installation and adjustment efficiency.
Large Work Diameter & Length: Capable of handling larger parts with dimensions up to 580*2000 mm.
Wide Voltage Range: Supports various power needs with 380V option.
Product Parameter
|
Model |
MQ8260C/1600 |
MQ8260C/1800 |
||
|
Max. work diameter × Max. length Capacity |
Φ580×1600 mm |
Φ580×1800 mm |
||
|
Max. swing over table |
Φ600 mm |
|||
|
Work diameter ground |
Φ30 – Φ100 mm |
|||
|
Throw of crankshaft Max. work length ground |
110 mm |
|||
|
In 3-jaw chuck |
1400 mm |
1600mm |
||
|
Between centres |
1600 mm |
1800mm |
||
|
Max. word weight Workhead |
120 Kg |
|||
|
Centre height |
300 mm |
|||
|
Work speed (2 step) Wheelhead |
25, 45, 95 r/min |
|||
|
Max. cross movement |
185 mm |
|||
|
Wheelhead rapid approach and with drawal |
100 mm |
|||
|
Wheel feed per turn of cross feed handwheel |
1 mm |
|||
|
Per grad. Of cross feed hand wheel Grinding wheel |
0.005 mm |
|||
|
Wheel spindle speed |
740, 890 r/min |
|||
|
Wheel peripheral |
25.6 – 35 m/sec |
|||
|
Wheel size (O.D. × Bore) Table |
Φ900 × 32 ×Φ305mm |
|||
|
Table travers per turn of handwheel |
Coarse |
5.88 mm |
||
|
Fine |
1.68 mm |
|||
|
Overall capacity of motors |
9.82 kw |
|||
|
Overall dimensions (L×W×H) |
4166 × 2037 × 1584mm |
4466x2037x1584mm |
||
|
Weight |
6000kgs |
6200kgs |
||
|
Working |
Ovality (new standard) |
0.005 |
||
|
Cylindricity |
0.01 |
|||
|
Roughness Ra |
0.21 |
|||
Factory Description
♥ Over 20 years of experience.
♥ Customized according to customer requirements with OEM ODE Services.
♥ Favorable price and easy operation.
♥ For many years, we have always adhered to quality first and service foremost, and have developed high-quality agents in
Chile,Brazil, Philippines, Malaysia,Indonesia, United States, Germany, Canada, Nigeria,Thailand,Cameroon, Romania and other countries.
♥ Professional technical team strictly controls every step of production to ensure the quality of each equipment.
♥ Provide technical guidance, production, installation, commissioning and maintenance services for our customers.
