Products Description

The crankshaft grinder is intended for use in the automobile. tractor,diesel engine works and their repair shops to grind the journals and crankpins ofcrankshafts.

Structure features: 1.Three different work speeds are obtainable by making use of the belts in the headstock.

2.Cross chucks are used in the headstock and tailstock.

3.Friction coupling is used in the headstock transmission chain for its easy adjustment.

4.Table traverse is operated either by hand or by power.

5.Wheelhead rapid approach and withdrawal is effected through hydraulic means.

6.Wheelhead rapid approach and withdrawal is effected through hydraulic means.

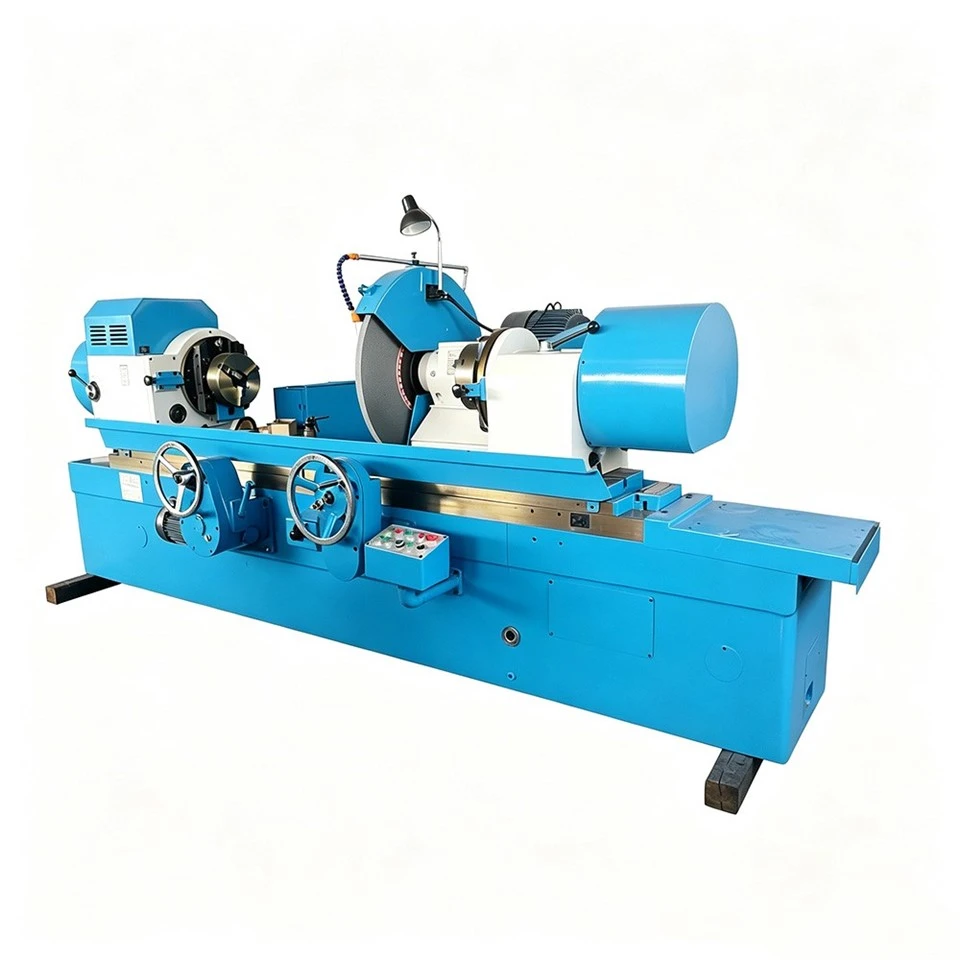

Crankshaft Grinding Machine

Product Parameter

Three Work Speeds: The machine offers three different work speeds, providing flexibility in grinding operations and allowing for optimal adjustments based on the specific requirements of the crankshaft.

Hydraulic Wheel Head Movement: The hydraulic system for wheel head approach and withdrawal, with a digital display resolution of 0.005mm, ensures precise and efficient grinding, reducing manual effort and increasing accuracy.

80mm Diameter Spindle: The 80mm diameter spindle provides high rigidity and strength, ensuring stable and accurate grinding performance, even under heavy loads.

Automatic Cycle Oil Pump: The automatic cycle oil pump facilitates smooth and consistent movement of the wheel head, enhancing the overall efficiency and reliability of the grinding process.

Model	MQ8260x1800
Max . Work diameter × Max . length	Φ600×1800 mm
Capacity
Max. Swing over table	Φ600 mm
Work diameter ground with steady rest	Φ30~Φ100 mm
Throw of crankshaft	110 mm
Max . work length ground
In 3-jaw chuck	1520 mm
Between centers	1800 mm
Max . work weight	120 kg
Work head
Center height	300 mm
Work speed	25, 45, 95 r/min
Wheel head
Max . Cross movement	85 mm
Wheel head rapid approach and withdrawal	200 mm
Wheel feed per turnoff cross fed hand wheel Per grad . of cross feed hand wheel	1 mm
	0.005 mm
Grinding wheel
Wheel spindle speed(2 steps)	740, 890 r/min
Wheel peripheral speed	25.6-35 m/sec
Wheel size (O . D .× width ×Bore)	Φ900×32×Φ305 mm
Table
Table traverse per turn of hand wheel coarse	5.88 mm
Fine	1.68 mm
Overall capacity of motors	9.82 kw
Overall dimensions (L×W×H)	4200×2050×1600
Weight	Approx . 6000kg

Customer Visit

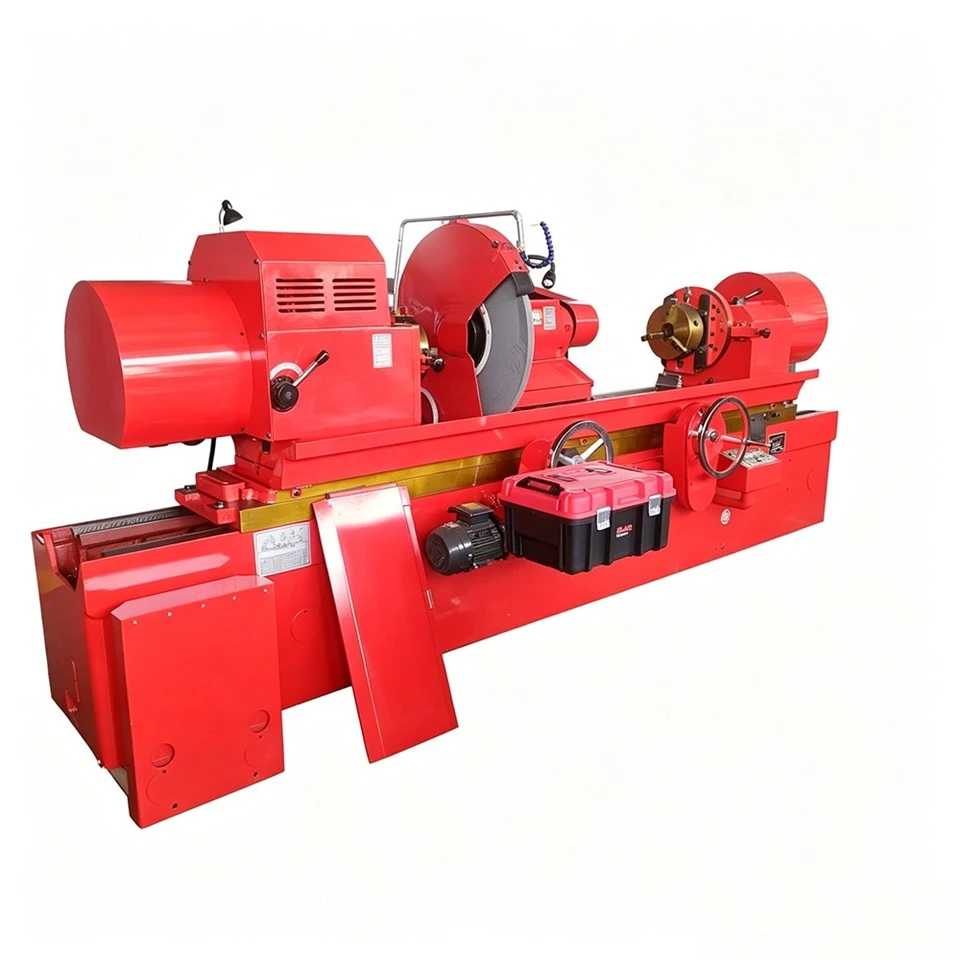

Crankshaft Grinding Machine

Main Products Display

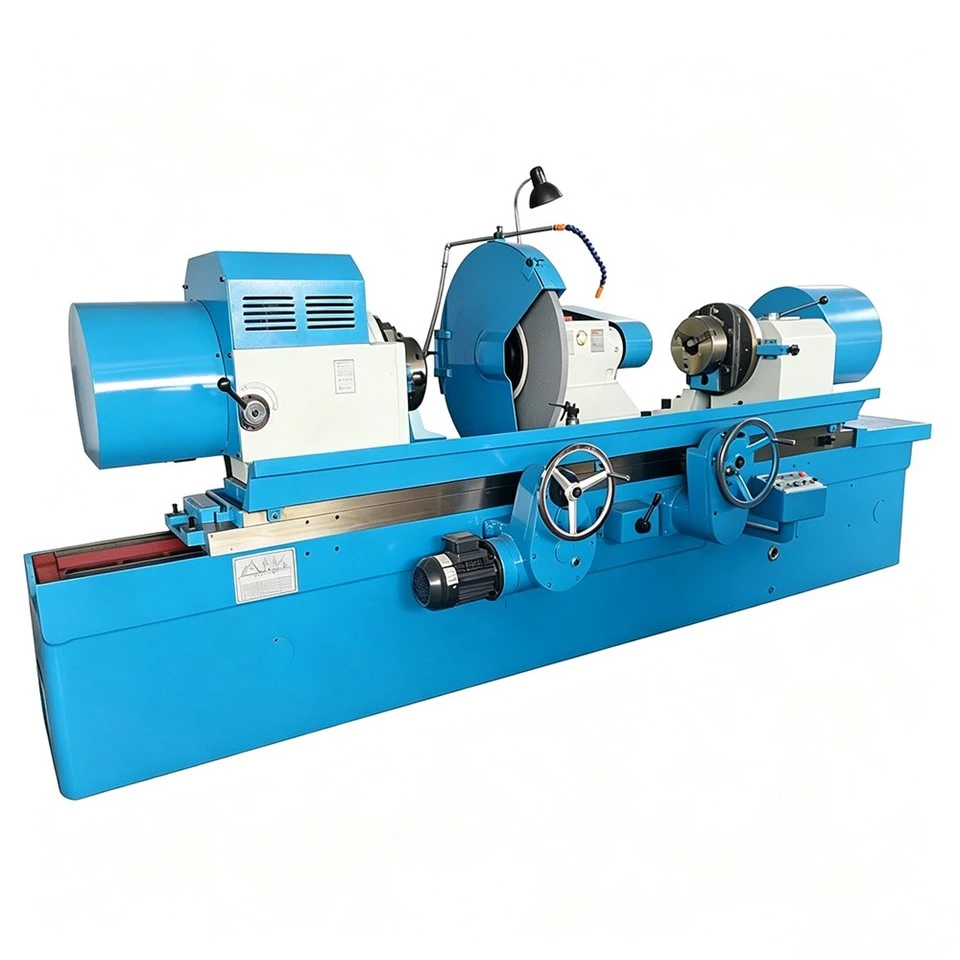

Crankshaft Grinding Machine
