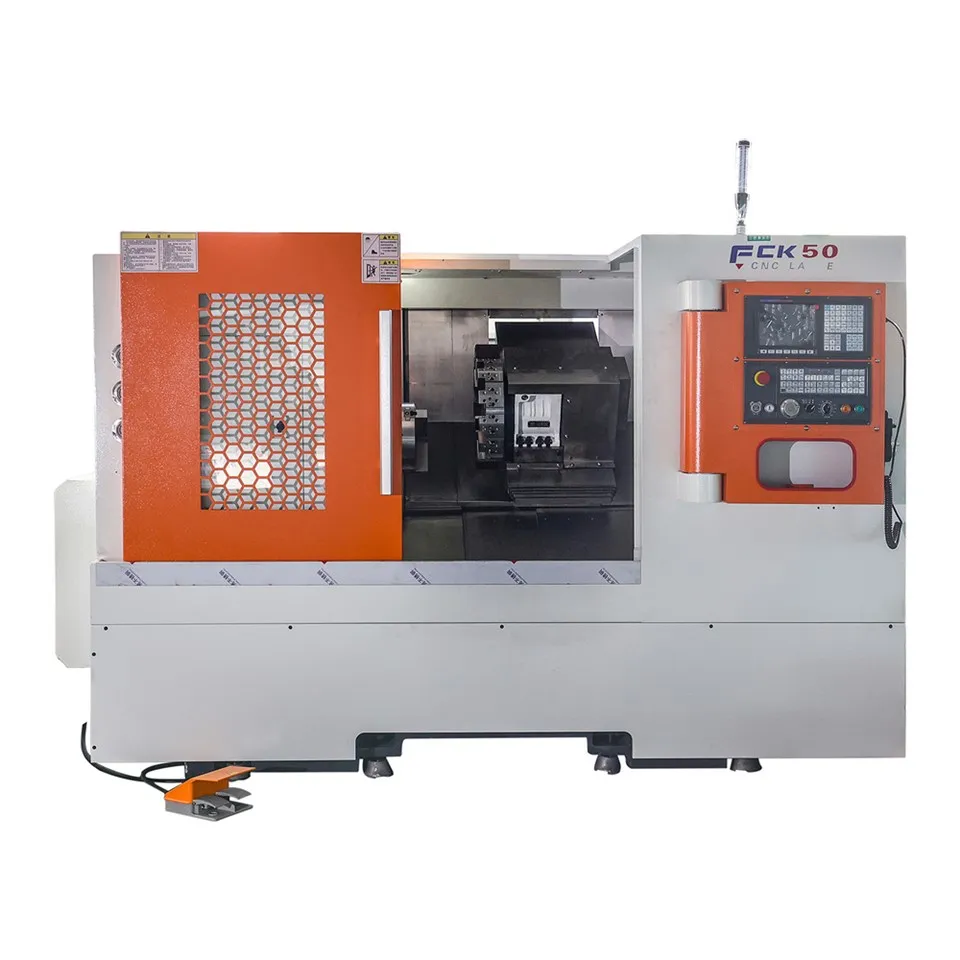

CNC Slant Bad Lathe
The Machine Tool is slant bed Turn-Milling Machine, which has X, Z, C axis, and controlledby servo motor. It has a compact and reasonable structure, the spindle (C axis) driven by servomotor. This machine not only can turn excircle, end face, thread of Rod type and Plate typework piece in kinds of material, but also can mill, drill kinds of radial and axial hook face, etc.
many kinks processes. This machine is suitable to process small work piece in a high efficient.
1.High-Precision Milling: Offers ±0.008mm positioning accuracy for precise cuts.
2.Heavy-Duty Construction: Built for heavy-duty work with robust structure.
3.Large Workpiece Capacity: Supports up to 580mm maximum workpiece length.
4.Eco-Friendly Design: Features environmentally friendly materials and processes.
5.Reliable Warranty: Enjoy 1-year warranty for peace of mind.
Technical parameters
|
Name |
Unit |
FCK50 (Tilt 30°) |
|
Maximum rotation diameter on the bed |
mm |
Φ550 |
|
Maximum cutting diameter |
mm |
Φ520 |
|
Processing diameter under the turret |
mm |
Φ300 |
|
Maximum cutting length |
mm |
500 |
|
X-axis travel |
mm |
260 |
|
Z-axis travel |
mm |
600 |
|
X-axis moving speed |
mm/min |
24000 |
|
Z-axis moving speed |
mm/min |
24000 |
|
Handwheel |
mm |
0.001/0.01/0.1 |
|
X, Z feed speed |
mm/min |
0~5000 |
|
X, Z manual feed speed |
mm/min |
0~1260 |
|
X-axis repeat positioning accuracy |
mm |
0.005 |
|
X-axis positioning accuracy |
mm |
0.006 |
|
Z-axis repeat positioning accuracy |
mm |
0.006 |
|
Z Axis positioning accuracy |
mm |
0.008 |
|
Spindle speed |
rpm |
35-3000 |
|
Maximum spindle torque |
N.m |
48 |
|
Spindle nose |
A2-6 |
|
|
Spindle through hole diameter |
mm |
Φ67 |
|
Hollow hydraulic chuck through hole diameter |
mm |
Φ50 |
|
Chuck |
10 inch 3-jaw |
|
|
Number of tool holders |
12-station |
|
|
Tool change time |
s |
0.25 |
|
Tool installation size |
mm |
25×25 |
|
Borrowing tool holder installation diameter |
mm |
Φ32 |
|
Tail stock travel |
mm |
350 |
|
Top taper |
MT-5# |
|
|
Main motor power |
kw |
7.5/11 (4500rpm) |
|
Main motor torque |
N.m |
48 |
|
X-axis feed motor power |
kw |
2.3 |
|
X-axis feed motor torque |
N.m |
15 |
|
Z-axis feed motor power |
kw |
2.3 |
|
Z-axis feed motor torque |
N.m |
15 |
|
Coolant capacity |
L |
200 |
|
Motor type (1HP) |
kw |
0.18 |
|
Installation (length * width * height) |
mm |
2697/1795/1860 |
|
Machine weight |
kg |
3600 |
