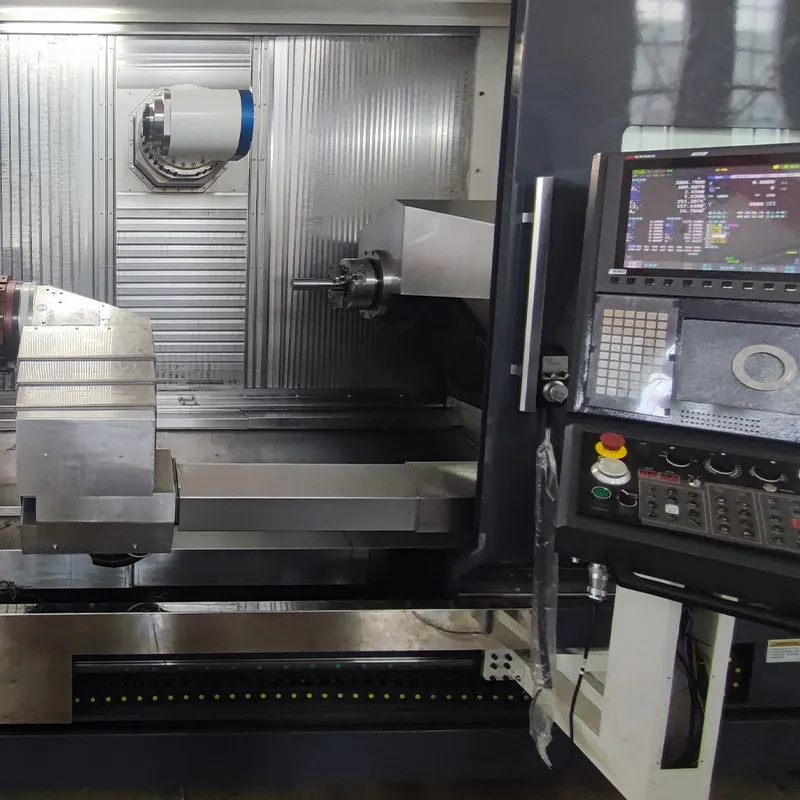

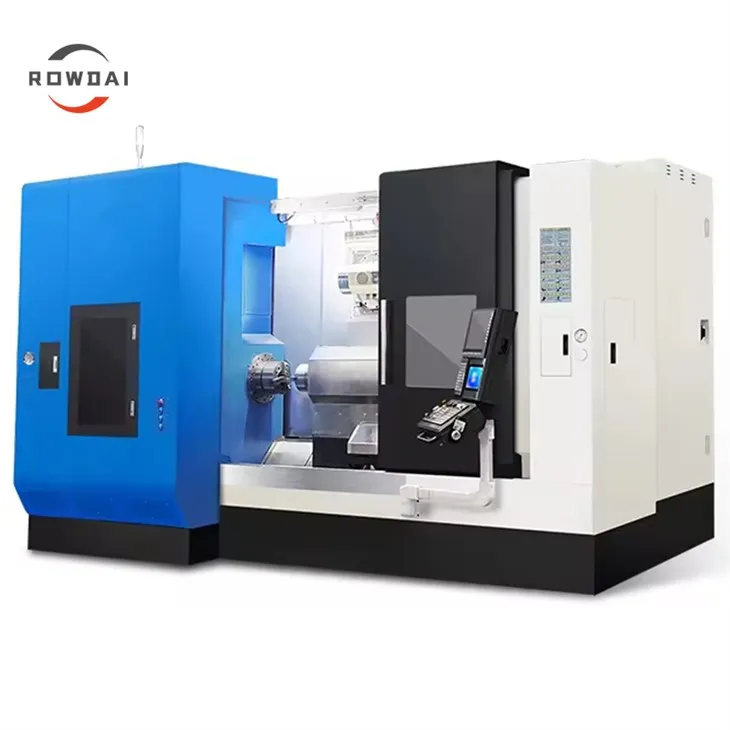

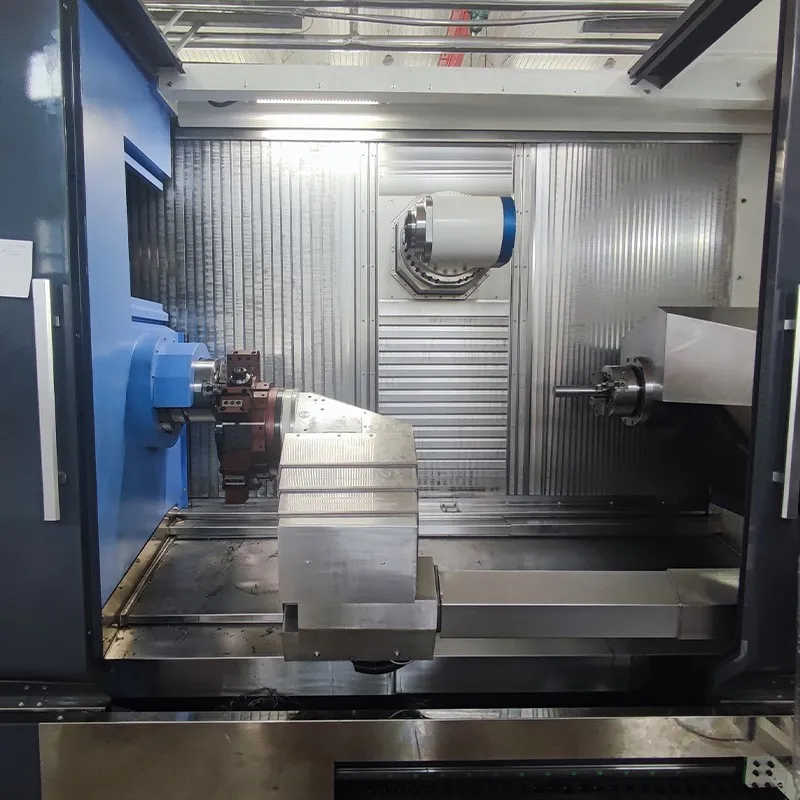

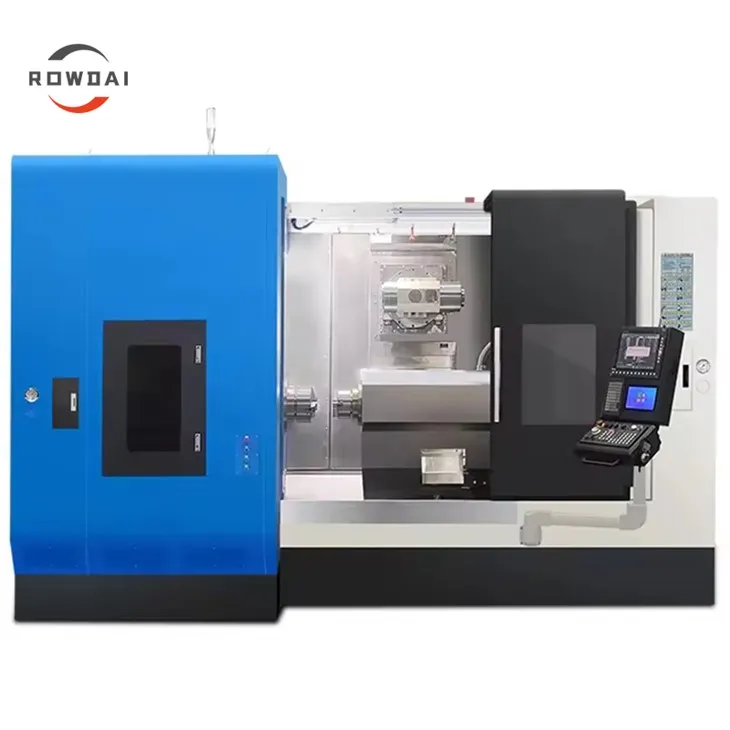

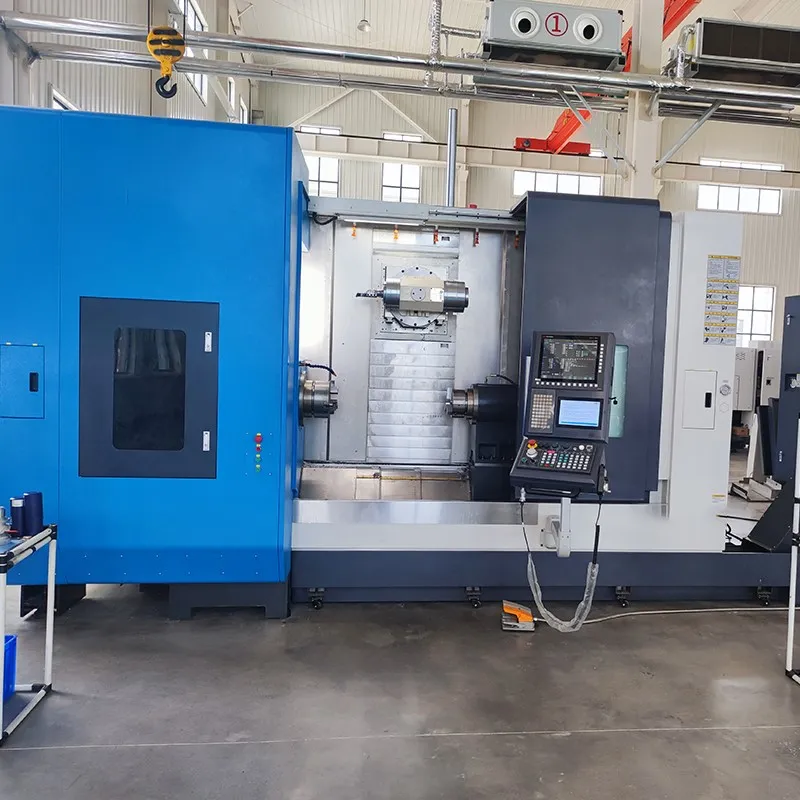

This 5 axis cnc universal machining center is capable of processing both shaft-type and disc-type components. In addition to the standard functions of a CNC lathe, it can execute operations such as face milling, drilling, tapping, straight grooving, helical grooving, and gear milling. Featuring integrated turning, milling, and boring capabilities, it embodies the "one-setup, complete-finish" machining philosophy, enabling the efficient, high-volume, and high-precision processing of rotational parts.

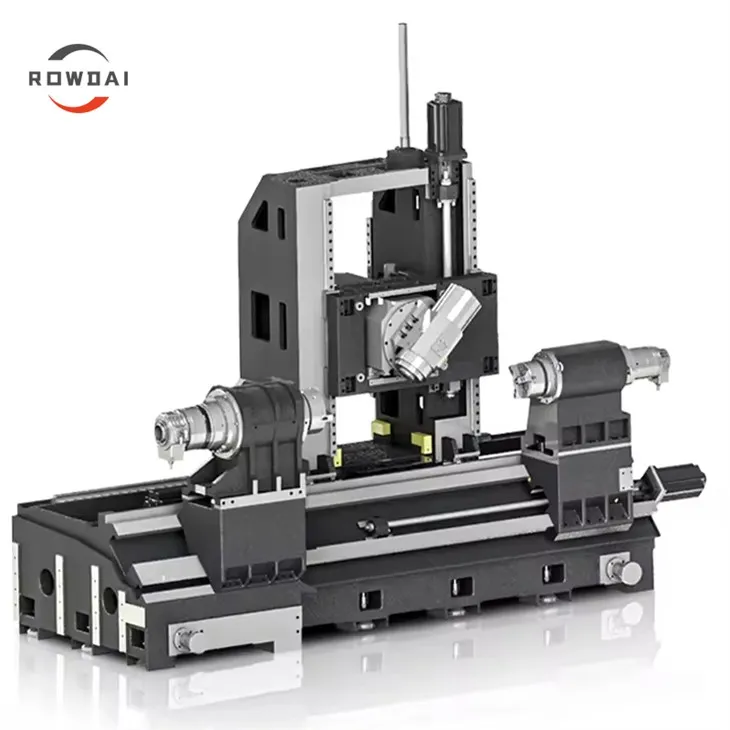

The design incorporates a carefully balanced rigidity matching scheme for key components-including the spindle, machine bed, and tailstock-thereby significantly enhancing the overall structural rigidity of the machine and ensuring stability during heavy-duty cutting operations. Consequently, the 5 axis cnc universal machining center is capable of achieving an external diameter machining precision of IT6 to IT7 grades. As a versatile general-purpose machine tool, it is particularly well-suited for use in industries such as locomotive manufacturing, aerospace, and defense, where the efficient, high-volume, and high-precision processing of rotational components is a critical requirement.
Technical Parameters
|
Specification |
HTMC800S |
|
|
Max. Swing diameter over bed |
600mm |
|
|
Max. Turning length |
1200mm |
|
|
Max. Turning diameter |
580mm |
|
|

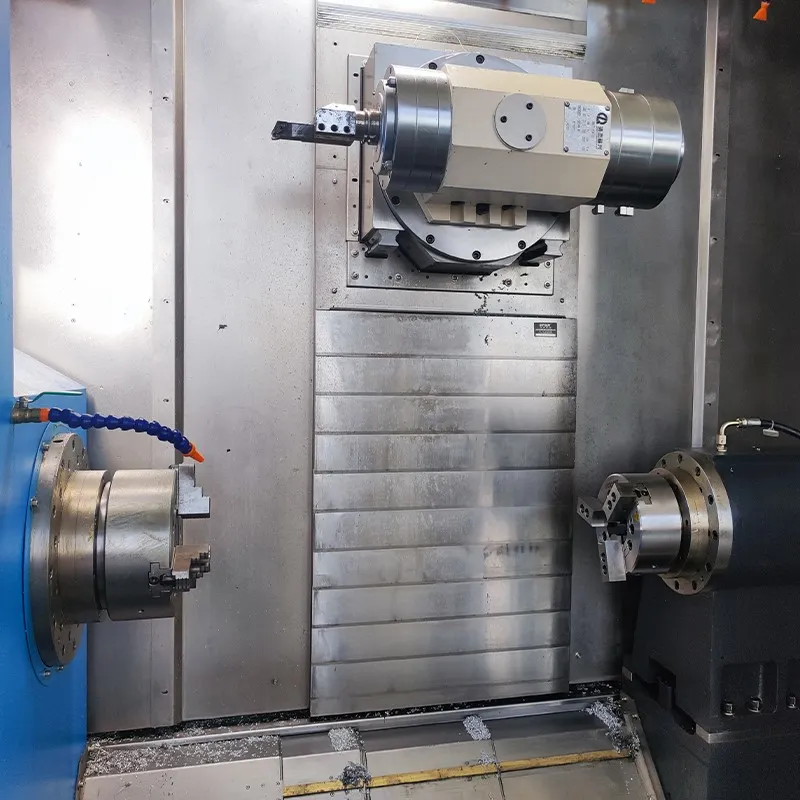

Swing milling spindle |
HSK-T63 |
|
|
Swing milling spindle motor |
31.5kw |
|
|
Swing milling spindle speed |
6000rpm |
|
|
The first spindle |
Spindle type |
A2-8 electric spindle |
|
Spindle hole |
87mm |
|
|
Max. Through bar diameter |
75mm |
|
|
Max. Speed |
3000rpm |
|
|
Motor |
37kw |
|
|
Max. torque |
283N.m. |
|
|
Hydraulic chuck |
10inch |
|
|
The second spindle |
Spindle type |
A2-6 electric spindle |
|
Spindle hole |
67mm |
|
|
Max. Through bar diameter |
50mm |
|
|
Max. Speed |
4000rpm |
|
|
Motor |
30kw |
|
|
Max. torque |
144 |
|
|
Hydraulic chuck |
8inch |
|
|
X axis rapid move speed |
12 m/min |
|
|
Y axis rapid move speed |
12 m/min |
|
|
Z axis rapid move speed |
12 m/min |
|
|
The second spindle rapid move speed |
12 m/min |
|
|
Z axis travel |
1550mm |
|
|
X axis travel |
720mm |
|
|
Y axis travel |
±125mm |
|
|
The second spindle travel |
1300mm |
|
|
B axis |
±110° |
|
|
Tool magazine |
40pcs chain type |
|
|
Max. Tool diameter |
90mm |
|
|
Max. Tool length |
400mm |
|
|
Machine weight |
Around 17T |
|
|

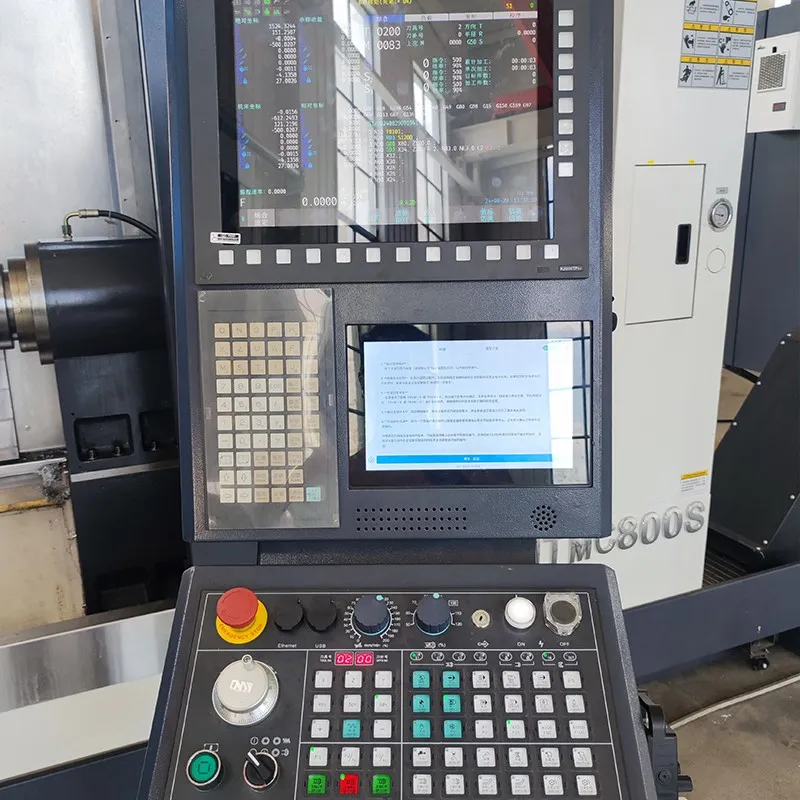

System |
KND system |
|
Accuracy
|
Specification |
Accuracy |
|
|
Processing accuracy |
IT6 |
|
|
Roundness of workpiece |
0.0025mm/Ф75 |
|
|
Cylindricity of workpiece |
0.010mm / 150mm |
|
|
Flatness of workpiece |
0.010mm/Ф200mm |
|
|
Surface roughness of workpiece |
Ra1.25μm |
|
|
Positioning accuracy |
X axis |
0.008mm |
|
Z axis |
0.008mm |
|
|
Y axis |
0.01mm |
|
|
B axis |
40″ |
|
|
C axis |
40″ |
|
|
Repeat positioning accuracy |
X axis |
0.004mm |
|
Z axis |
0.004mm |
|
|
Y axis |
0.006mm |
|
|
B axis |
25″ |
|
|
C axis |
25″ |
|
