Products Description

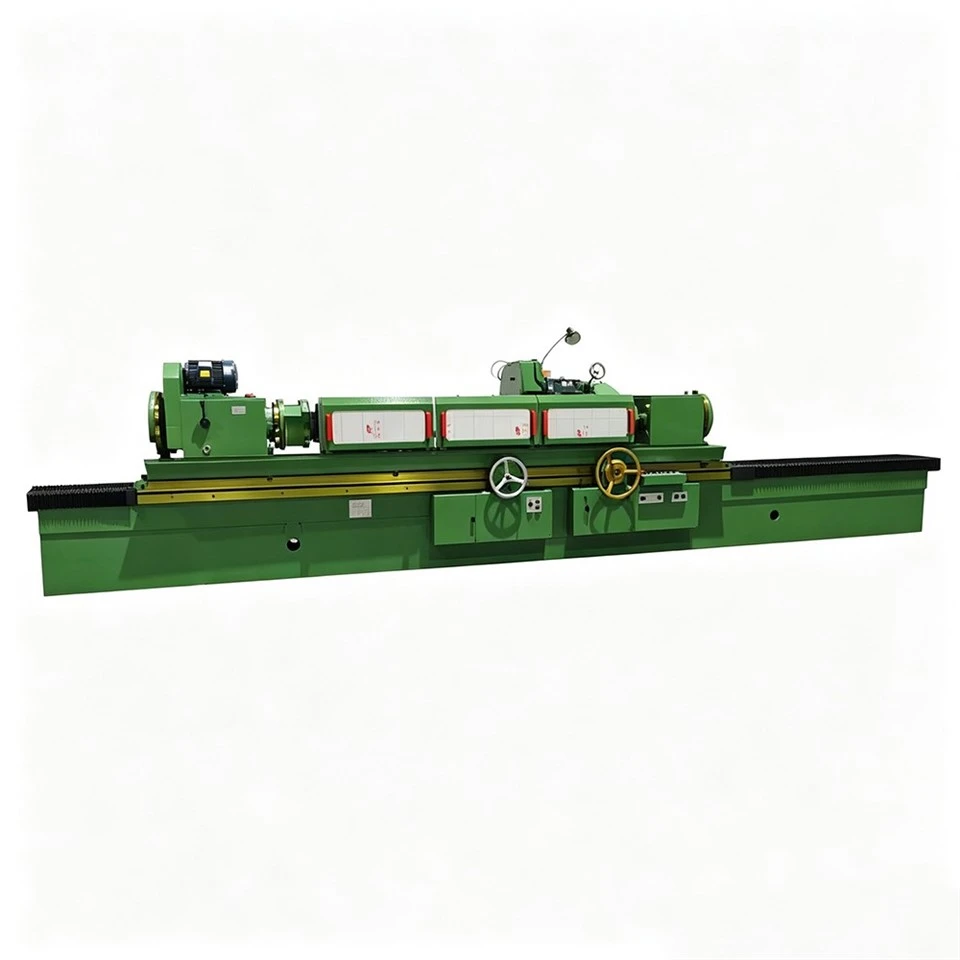

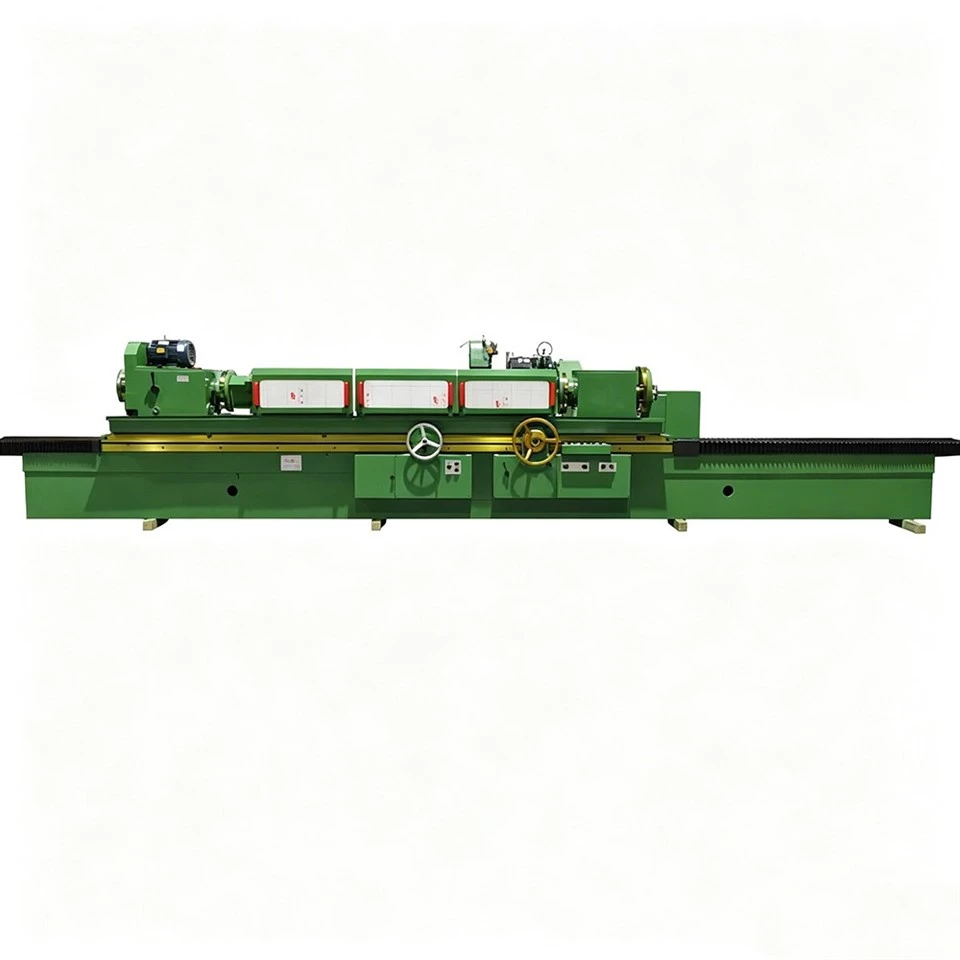

MQ8260 crankshaft grinder

Structure:

1. The machine tool is controlled by mechanical, electrical, hydraulic, and manual control.

2. The left and right chucks of the basic machine tool adopt adjustable cross chucks to improve the efficiency of workpiece installation and adjustment.
3. The workpiece is clamped by the center or the chuck, driven by the head frame motor, and manually fed for grinding.

4. The worktable moves longitudinally, either manually or by motor. When motorized, the worktable can only move quickly by point action, which is used for skipping or adjusting.

5. The maximum adjustable amount of the left and right cross chucks is 110mm in the vertical direction and 2mm in the horizontal direction. The chuck also has a small amount of rotation adjustment, and its range is0-30°.

6. The workpiece, grinding wheel, worktable, cooling pump and oil pump are all driven by separate motors.

7. The worktable and the grinding wheel frame adopt hydraulic and electrical interlocking mechanism, which can ensure safety no matter in adjustment or grinding due to operation errors, and the grinding wheel frame is equipped with a reliable protective cover.

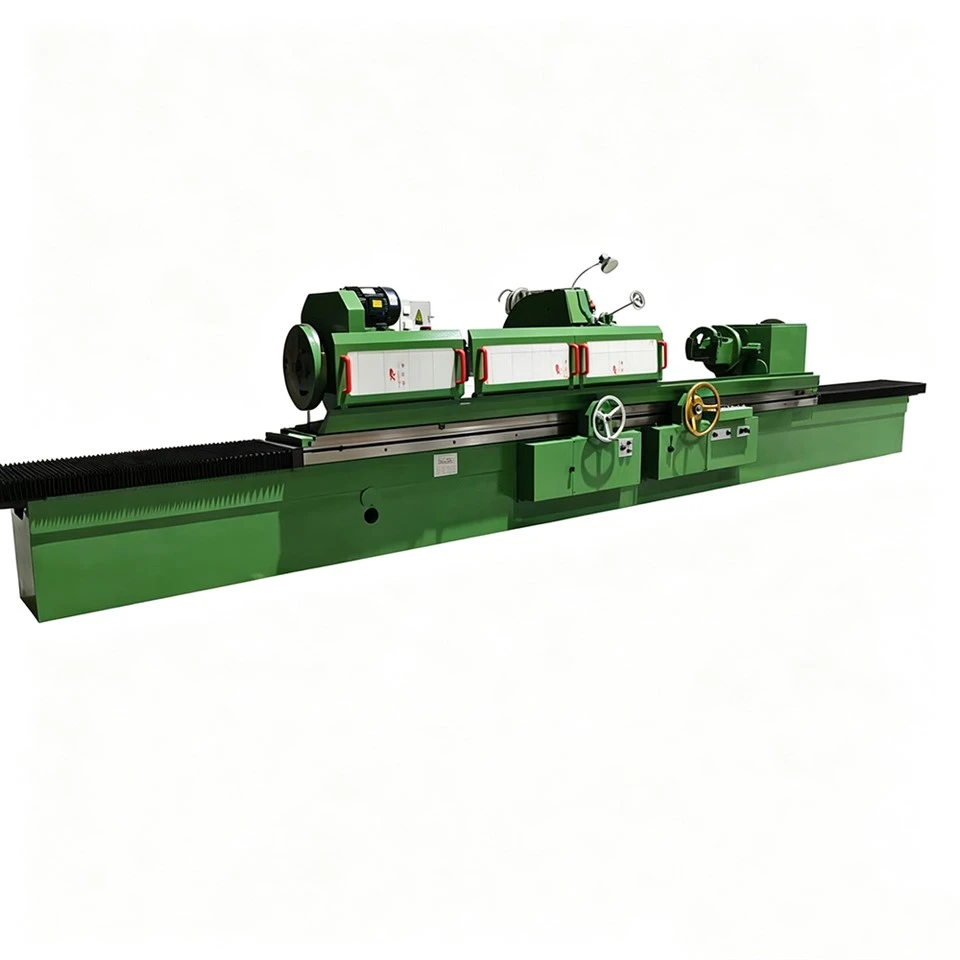

Heavy-duty Crankshaft Grinding Machine

Product Parameter

Model	MQ8260Bx1600	MQ8260Bx1800	MQ8260Bx2000	MQ8260Cx1600
Max. work swing dia. x Max. length(mm)	φ580x1600	φ580x1800	φ580x2000	Φ600x1600
Max. swing over table	580	580	580	600
Work dia. ground with steady rest(mm)	φ30~φ100	φ30~φ100	φ50~φ120	φ30~φ100
Throw of crankshaft(mm)	110	110	120	110
Max. work length ground: in 3-jaw chuck(mm)	1400	1600	1800	1400
between centers(mm)	1600	1800	2000	1600
Max. work weight(kg)	120	120	150	120
Center height(mm)	300	300	300	300
Work speed(r/min)	25, 45, 95	25, 45, 95	30, 45, 65, 100	25, 45, 85
Max. cross movement(mm)	185	185	185	185
Wheelhead rapid approach & withdrawal(mm)	100	100	100	100
per grad of cross feed hand wheel (mm)	1	1	1	1
Wheel feed per turn of cross feed handwheel(mm)	0.005	0.005	0.005	0.005
Wheel spindle speed(r/min)	740, 890	740, 890	740, 890	740, 890
Wheel peripheral speed(m/sec)	25.6~35	25.6~35	25.6~35	25.6~35
Wheel size(mm)	φ900x32 xφ305	φ900x32 xφ305	φ900x32 xφ305	φ900x32 xφ305
Table travel per turn of handwheel coarse(mm)	5.88	5.88	5.88	5.88
Fine(mm)	1.68	1.68	1.68	1.68
Table swivel(taper 18/100)degree	5	5	5	-
Table swivel per grad of scale(taper 1:50)	10'	10'	10'	-
Overall capacity of motors(kw)	9.82	9.82	11.12	9.82
Overall dimensions(LxWxH)mm	5200x2050 x1700	5400x2050 x1700	5600x2050x1700	5200x2050 x1700
Weight kg	6000	6200	7000	6000
Ovality(new standard) mm	0.005	0.005	0.005	0.005
lindricity mm	0.01	0.01	0.01	0.01
Roughness Ra um	0.32	0.32	0.32	0.32
