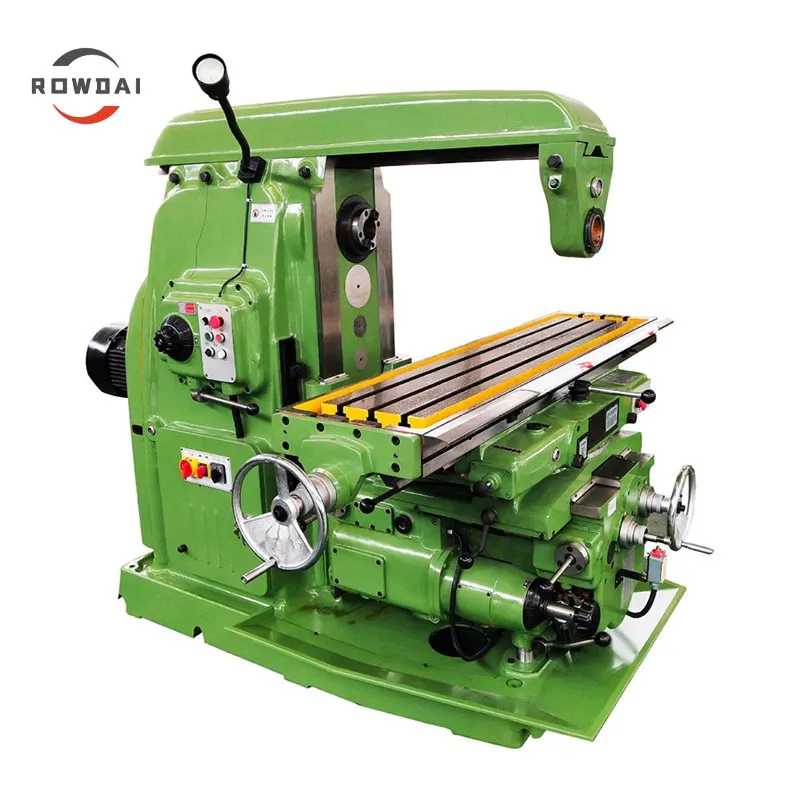

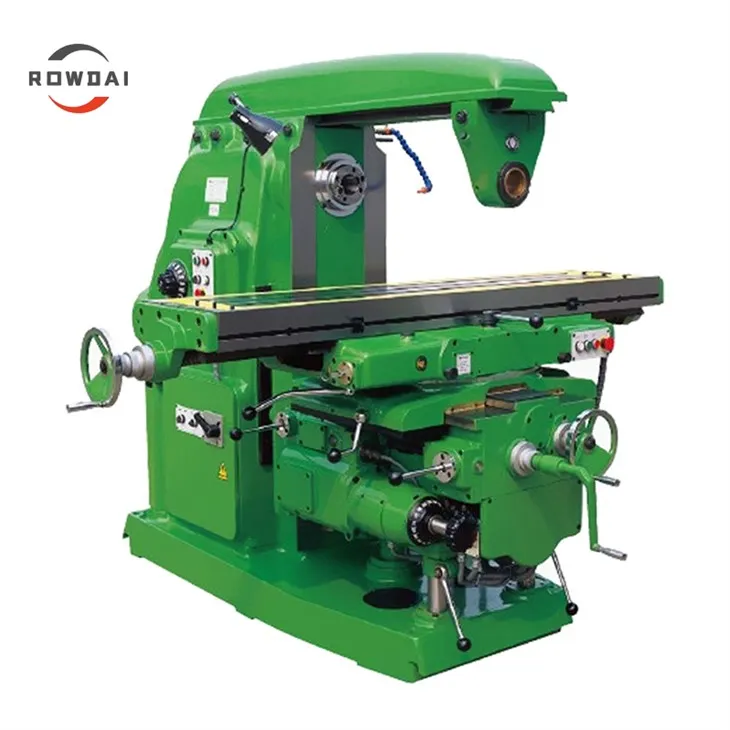

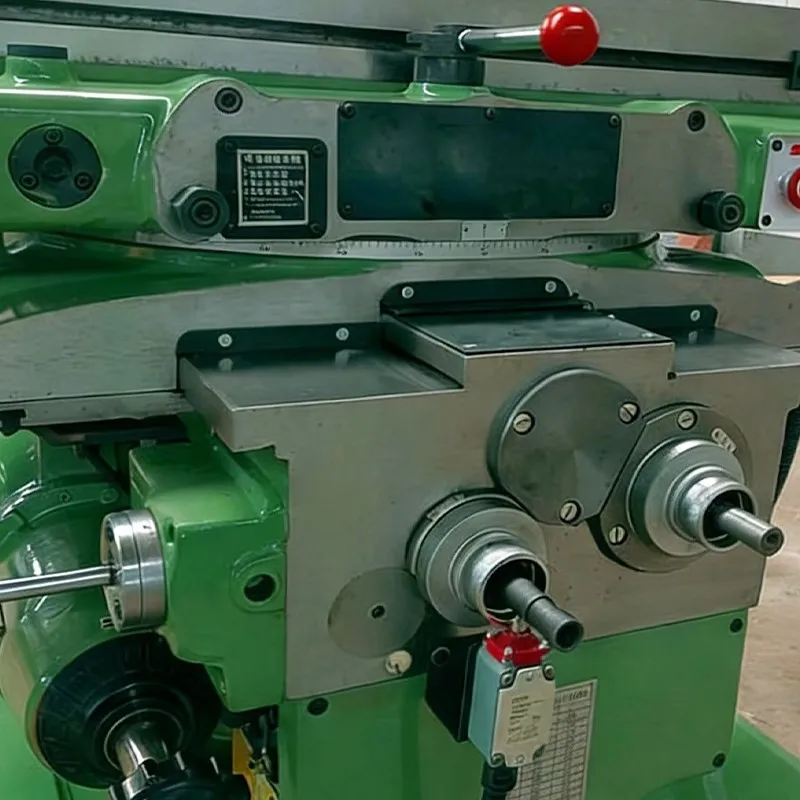

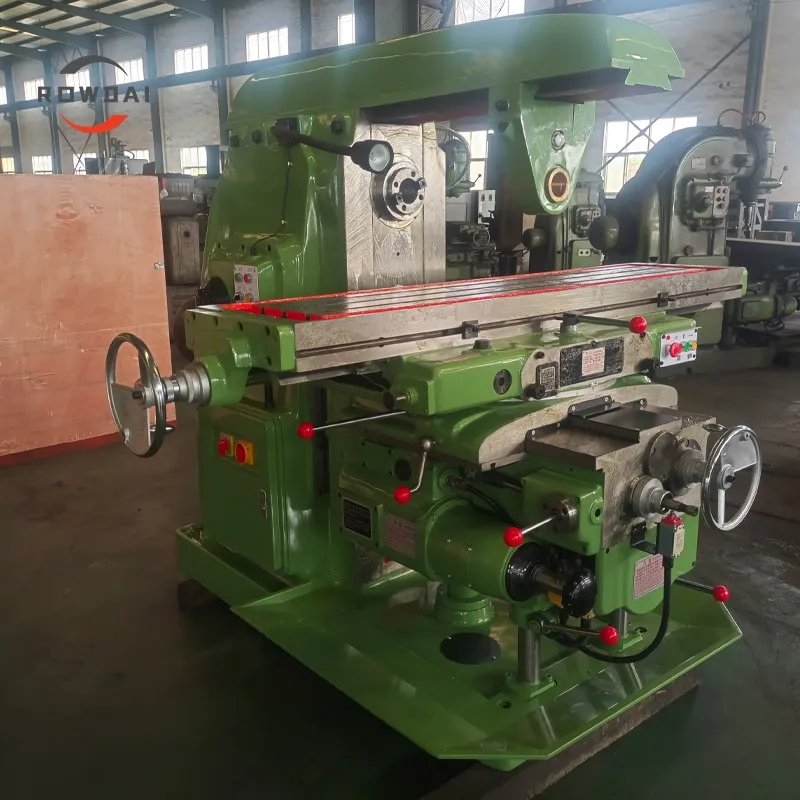

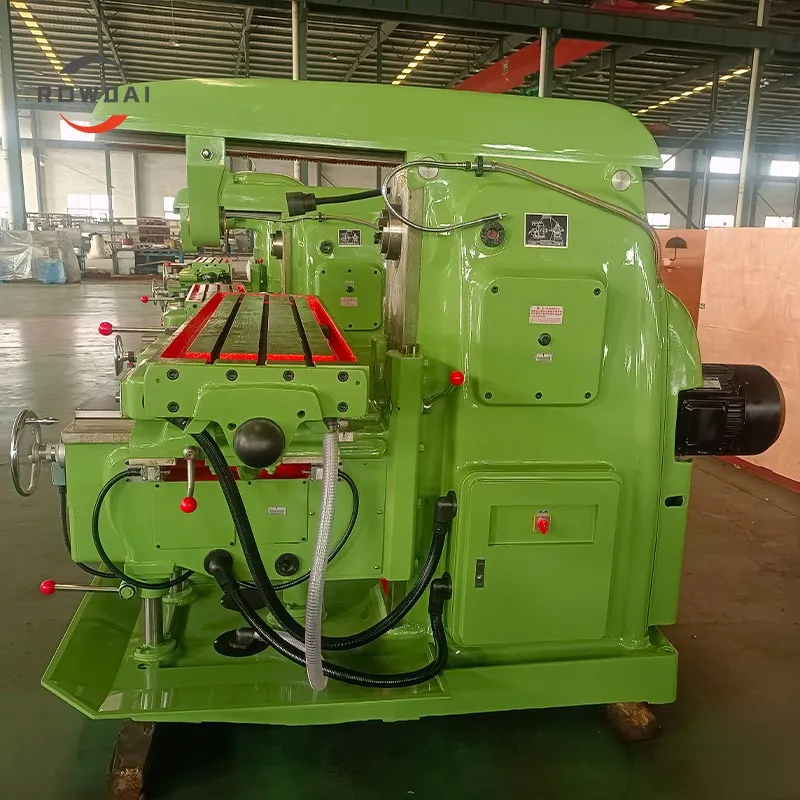

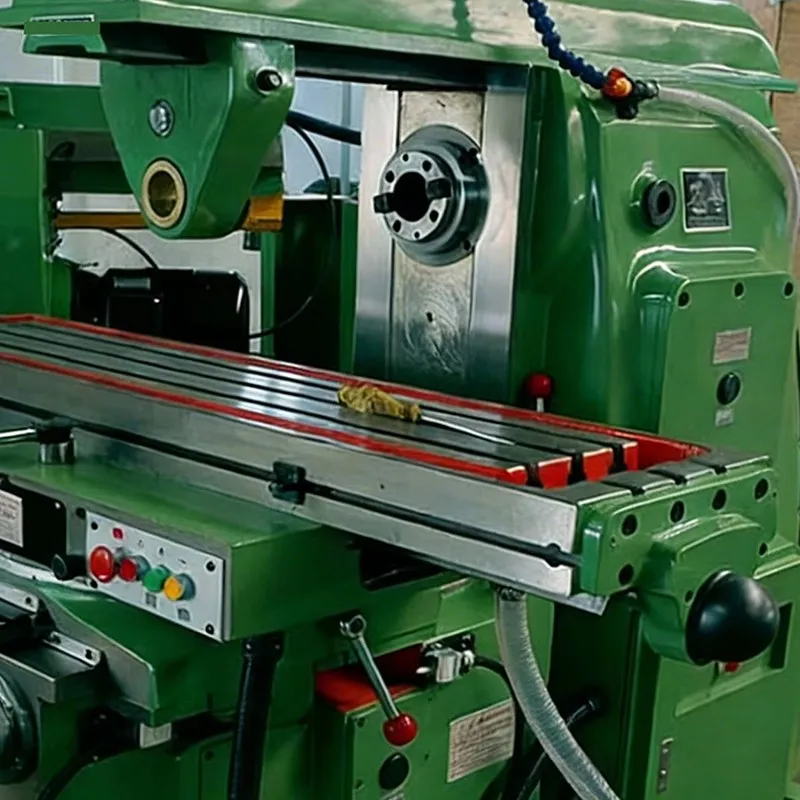

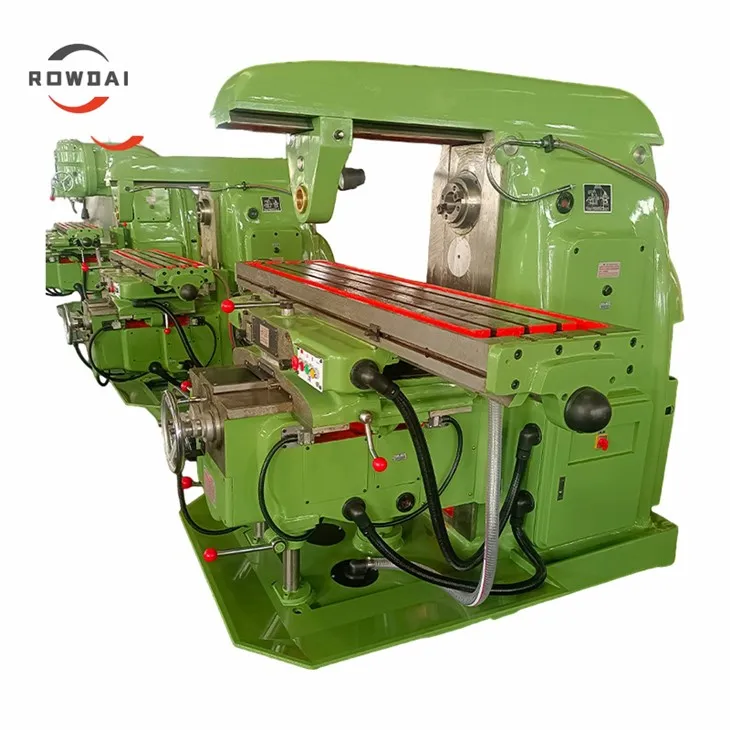

The Model X6140 Universal Knee-Type Milling Machine is a robust metal-cutting machine tool characterized by high rigidity and a wide range of feed speeds, enabling it to withstand heavy-duty cutting loads.
Features
- The Model X6140 Universal Knee-Type large horizontal milling machine is a general-purpose machine tool primarily suited for mass production, as well as for single-piece and small-batch production in mechanical processing and tool repair departments.
- The Model X6140 Universal Knee-Type large horizontal milling machine is designed for milling various workpieces using cylindrical, disc, angular, form, and face milling cutters. This machine is capable of machining flat surfaces, inclined planes, grooves, holes, gears, and other features. The machine's processing scope can be further expanded through the use of accessories such as a universal milling head, the standard worktable, and an indexing head.
- The worktable of the Model X6140 Universal Knee-Type large horizontal milling machine can be swiveled up to 45º to both the left and the right. When the worktable is rotated to a specific angle relative to its vertical axis-and is used in conjunction with an indexing head-the machine is capable of milling helical surfaces (such as the helical flutes of drill bits, helical gears, helical drums, etc.).
Technical Parameters
|
ITEMS |
Unit |
XA6140 |
|
Worktable size |
mm |
1700*400 |
|
T-slot |
mm |
3-18-90 |
|
Max. loading |
kg |
800 |
|
X axis travel (left & right) |
mm |
Manual：900 / Auto：880 |
|
Y axis travel ( front & back) |
mm |
Manual：315 / Auto：300 |
|
Z axis travel (up & down) |
mm |
Manual：380 / Auto：360 |
|
Distance from spindle center to worktable surface |
mm |
30-410 |
|
Distance from the vertical guide rail of the bed to the center of the worktable |
mm |
255-570 |
|
Max. rotation angle of the worktable |
±45° |
|
|
Spindle type |
7:24 ISO50 |
|
|
Spindle speed |
r/min |
30-1500 |
|
Spindle speed step |
step |
18 |
|
Cutting feeding speed |
mm/min |
X axis：23.5-1180 Y axis：23.5-1180 Z axis：8-394 |
|
Rapid move speed |
mm/min |
X axis：2300 Y axis：2300 Z axis：770 |
|
Main motor |
kw |
11 |
|
Feeding motor |
kw |
3 |
|
Voltage |
3phase 380v customer-made |
|
|
Machine Size |
Mm |
2600*2200*1800 |
|
Machine weight |
Kg |
3850 |
Standard Accessories
- XA6140 Horizontal milling machine
- Two Hanging rack
- Handwheel
- Hand lever
- Milling arbor
- Tool box with tools
- Oil pot
- Adjustable pad iron
- Docs：manual etc.
