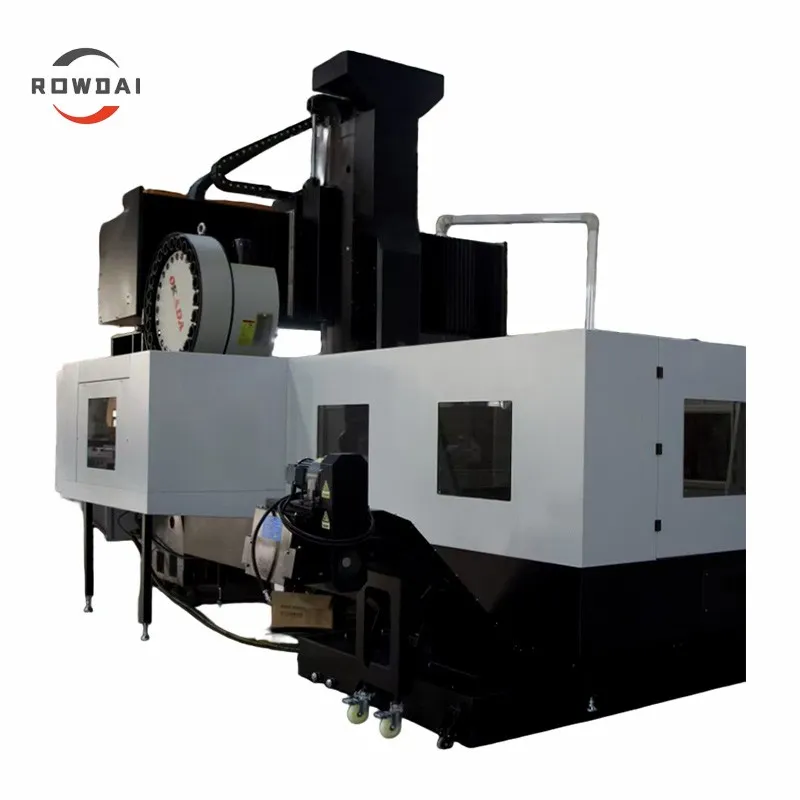

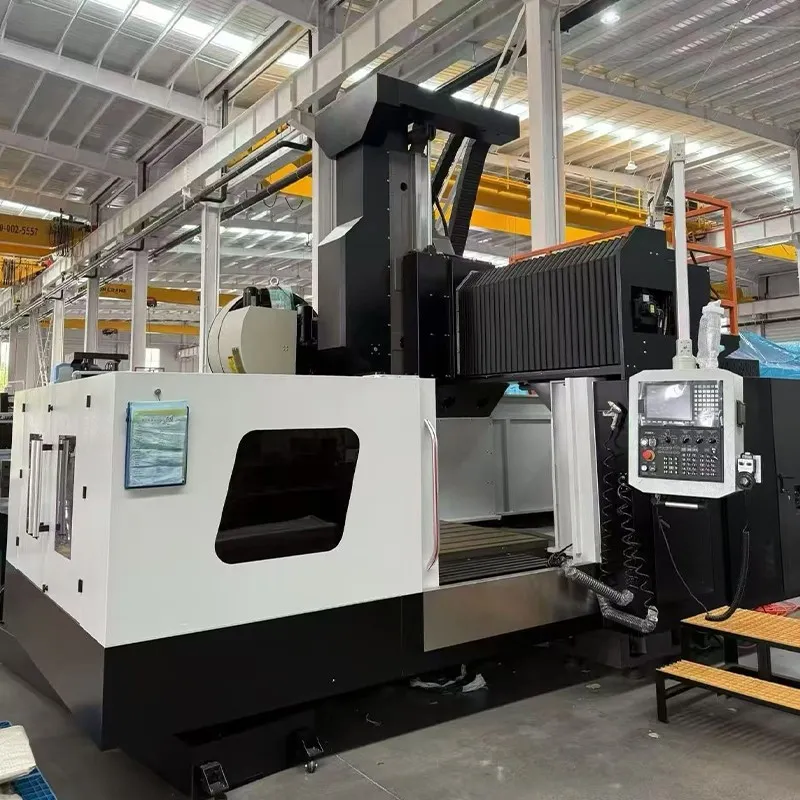

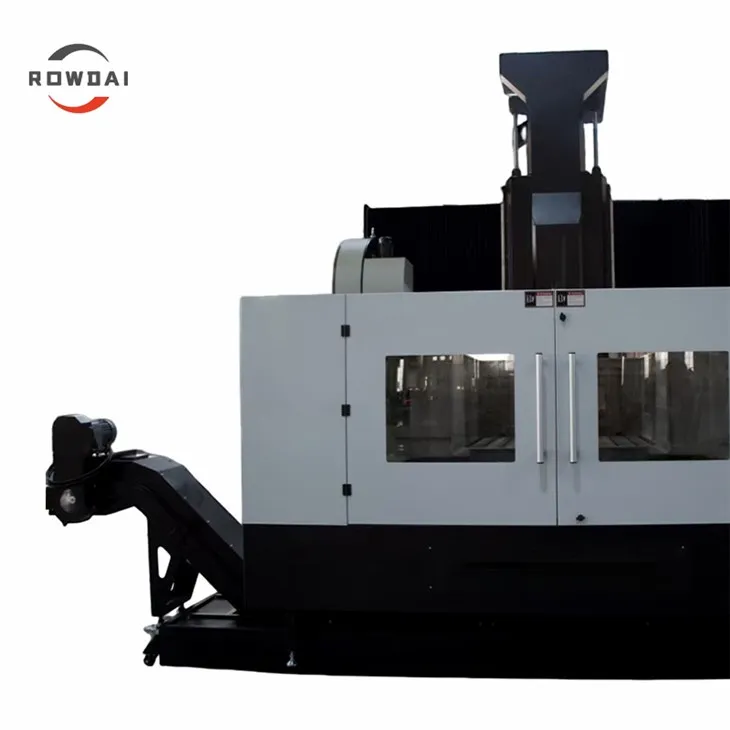

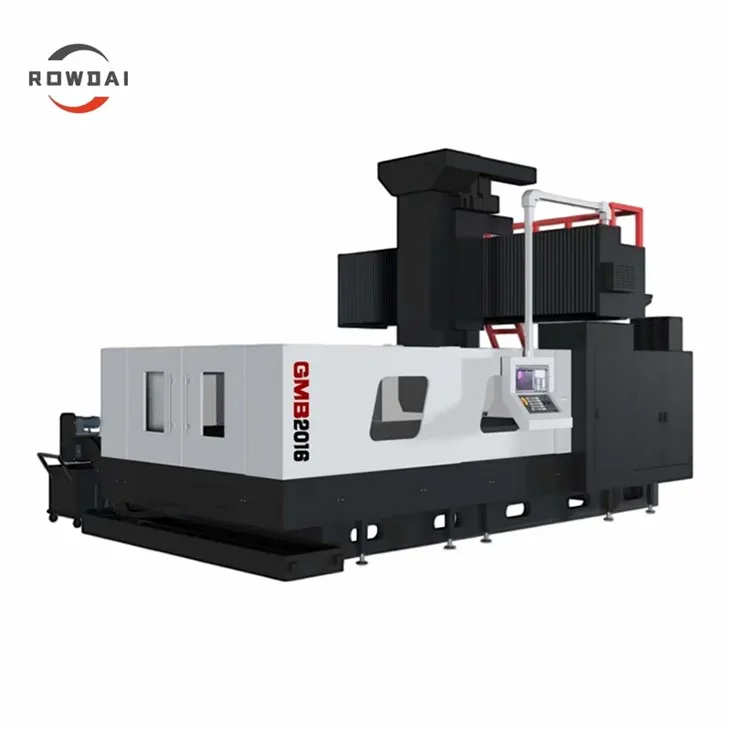

This gantry type machining center features a frame structure with grinding sliding guides, offering high rigidity, strong shock absorption, a wide machining range, and excellent stability. It boasts multiple machining functions including milling, boring, drilling (drilling, reaming, and boring), tapping, and countersinking. It can be equipped with various attachment milling heads and features manual head-changing functionality, further expanding its machining range. Multiple machining operations can be completed simultaneously on a single workpiece clamping.
This gantry type machining center has a mature structure and manufacturing process, ensuring stable quality. It is suitable for various machining fields such as automotive, shipbuilding, printing, packaging, textiles, military, and mold making. The machine tool is characterized by high efficiency, high precision, and high rigidity, making it an ideal choice for enterprises requiring high-efficiency, high-volume parts processing.

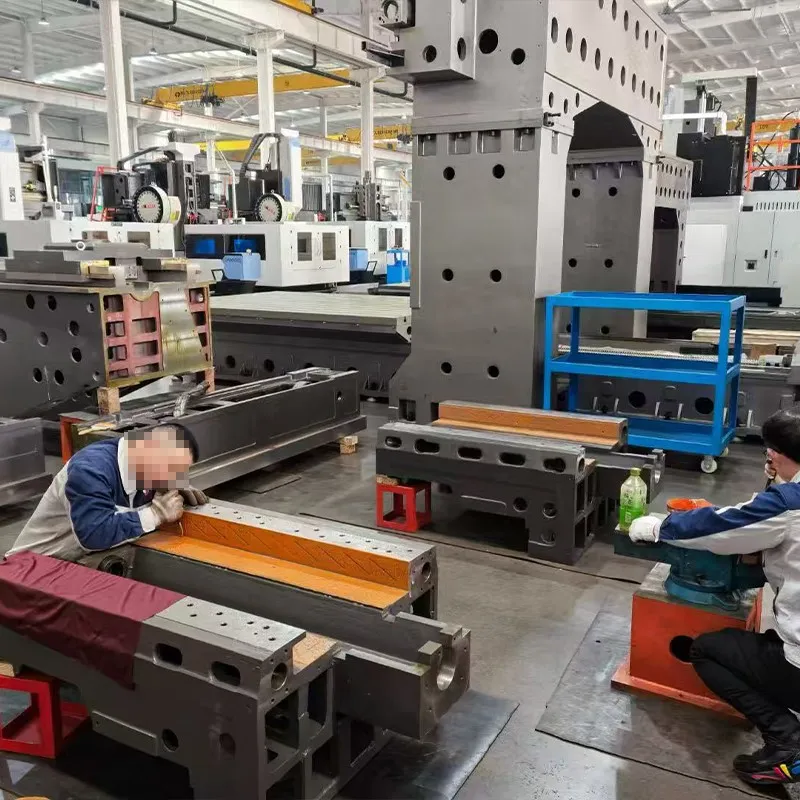

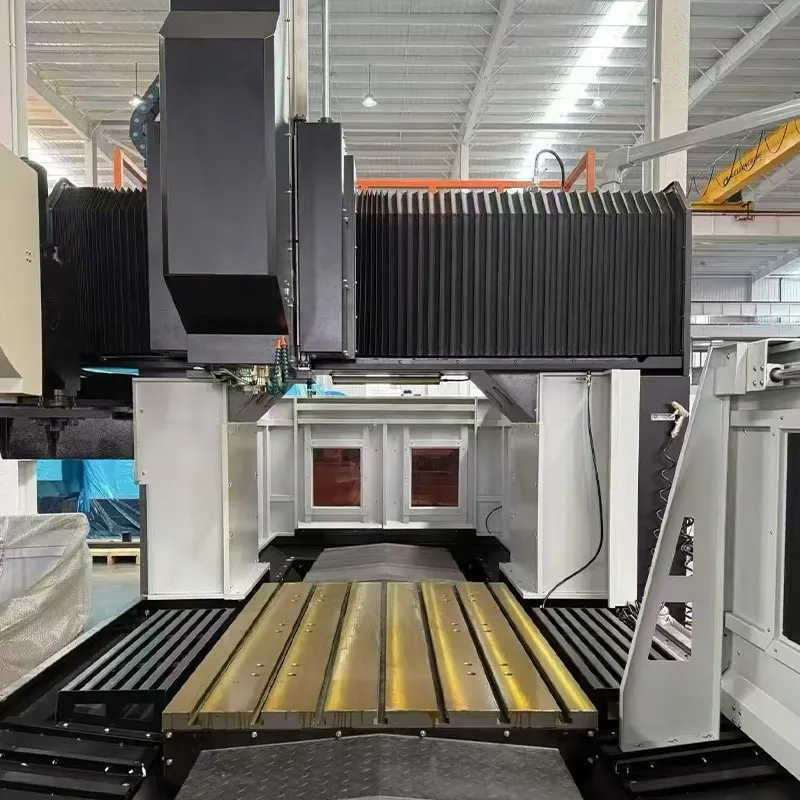

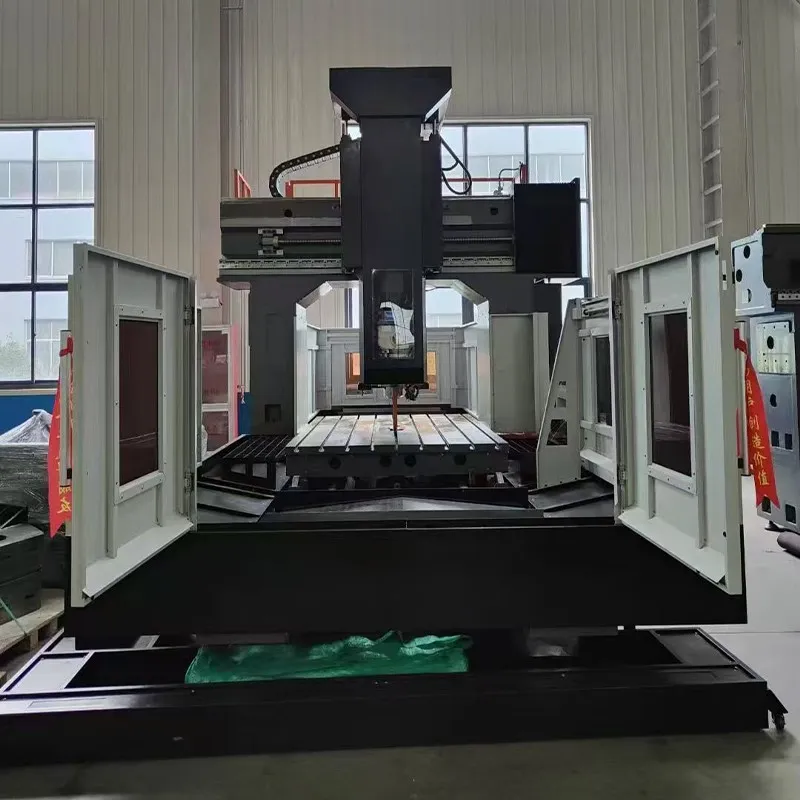

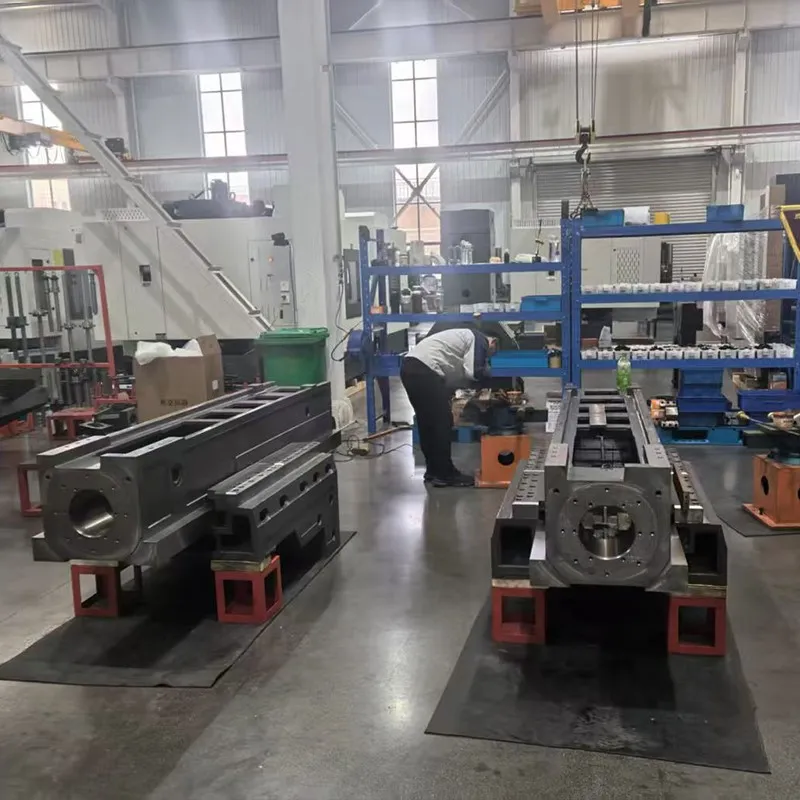

This gantry type machining center features a fixed gantry frame and a moving worktable. It mainly consists of a worktable, bed, column, crossbeam, slide, hydraulic system, lubrication system, cooling and filtration system, chip removal device, rotary control panel, and electrical control system.
Technical Parameters
|
No. |
Specification |
Unit |
GMB2016 |
|
|
1 |
Worktable |
Worktable size |
mm |
2100*1400 |
|
2 |
Max. loading |
Kg |
4000 |
|
|
3 |
T slot |
mm |
7-22×200 |
|
|
4 |
Processing range |
X axis travel |
mm |
2000 |
|
5 |
Y axis travel |
mm |
1700(Tool change stroke 1780) |
|
|
6 |
Z axis travel |
mm |
800 |
|
|
7 |
Distance from spindle end to worktable |
mm |
200-1000 |
|
|
8 |
Distance between two columns |
mm |
1700 |
|
|
9 |
Spindle |
Spindle taper |
BT50 |
|
|
10 |
Speed |
rpm |
10-6000 |
|
|
11 |
Feeding |
Cutting feeding range |
m/min |
10 |
|
12 |
X axis rapid move |
m/min |
12 |
|
|
13 |
Y axis rapid move |
m/min |
12 |
|
|
14 |
Z axis rapid move |
m/min |
10 |
|
|
15 |
Control System |
Mitsubishi M80 |
||
|
16 |
Motor |
X axis motor |
Nm |
453 |
|
17 |
Y axis motor |
Nm |
453 |
|
|
18 |
Z axis motor |
Nm |
453B |
|
|
19 |
Main spindle motor |
Kw |
DN18.5 |
|
|
20 |
Others |
X Y Z axis guide size |
X/Y axis 55# Roller linear guide(X aixs 6 slider block) |
|
|
21 |
Z axis hard railway |
|||
|
22 |
X Y Z axis Screw |
X axis 5010 |
||
|
23 |
Y axis 5010 |
|||
|
24 |
Z axis 5010 |
|||
|
25 |
Machine size |
mm |
6100*4200*3800 |
|
|
26 |
Machine weight |
T |
About 17 |
|
Standard Configuration
|
No. |
Specification |
Factory |
|
1 |
Casting bed |
Yunnan Taibiao HT300 |
|
2 |
CNC Controller |
Japan Mitsubishi M80 |
|
3 |
Spindle motor |
Japan Mitsubishi |
|
4 |
X Y Z axis motor |
Japan Mitsubishi |
|
5 |
Spindle |
Taiwan Okaka |
|
6 |
Spindle cutting cylinder |
Taiwan Hinaka |
|
7 |
X Y Z axis bearing |
Japan NSK / Germany FAG |
|
6 |
X/Y/Z Ball Screw(C3 级)5010 |
Taiwan HIWIN |
|
7 |

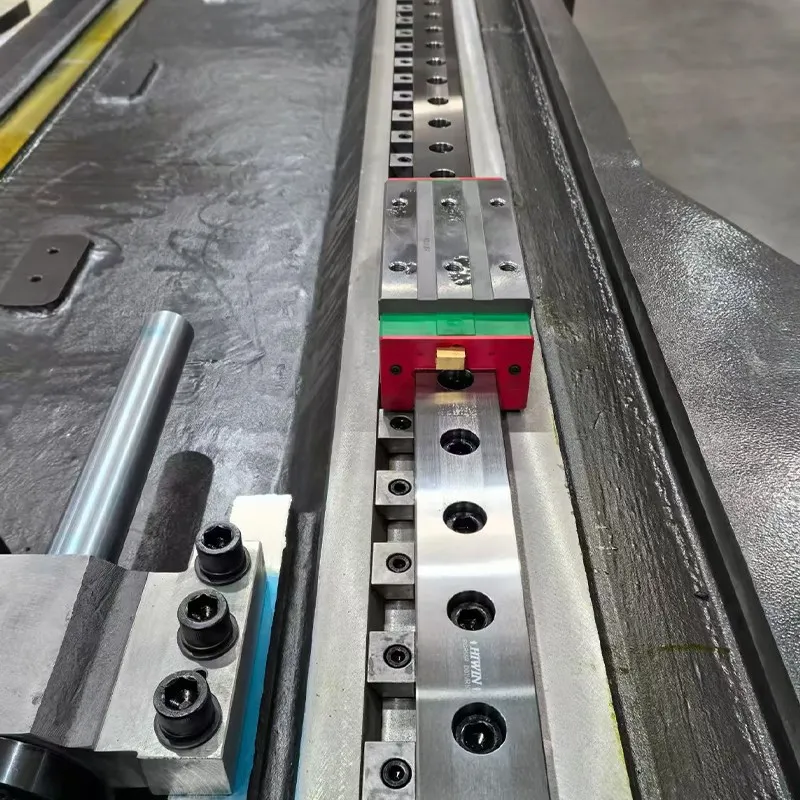

X/Y Roller linear guide 55# |
Taiwan HIWIN |
|
8 |
X Y Z axis screw pre-tensioned nut |
Taiwan YINSH |
|
9 |
X Y Z axis coupling |
Taiwan S+P |
|
10 |
Centralized automatic lubrication system |
Japan HERG |
|
11 |
Air source filtration and purification device |
Taiwan AirTAc Air curtain protection |
|
12 |
Cooling device |
China famous brand |
|
13 |
Electrical overload protector |
France Schneider |
|
14 |
Electrical cabinet air conditioner |
China famous brand |
|
15 |
Oil cooler |
China famous brand |
|
16 |
Robot disc tool magazine |
Taiwan Okaka |
|
17 |
Double nitrogen balance cylinder |
China famous brand |
|
18 |
Four screw and one chain chip conveyor |
China famous brand |
