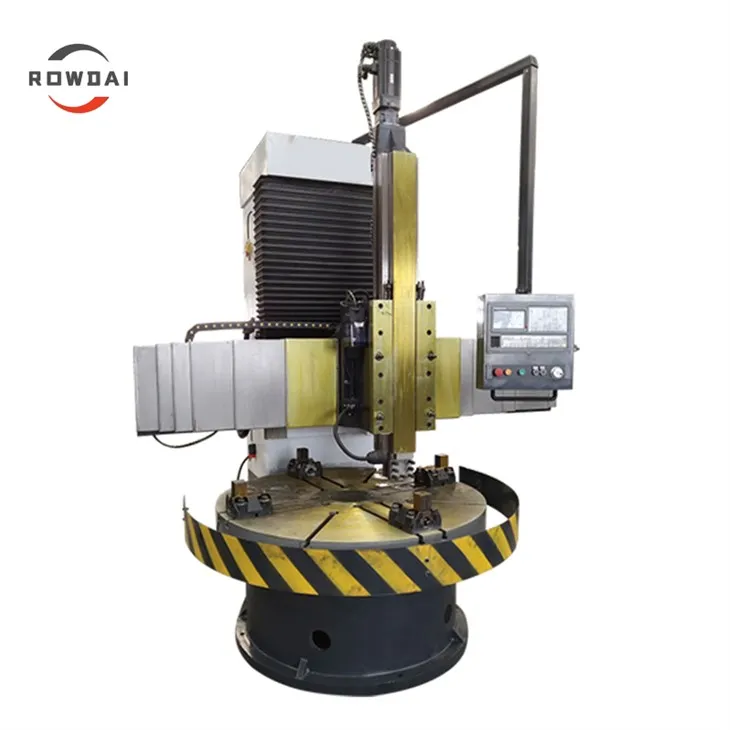

CNC vertical turning lathe machine is an advanced piece of equipment with good performance, a wide range of technology and high production efficiency. It is suitable for mechanical processing of various industries, and can be used for internal and external cylindrical surface, internal and external cone surface, end face, grooving Rough and finish machining of circular arc and various rotary surfaces. It can be equipped with a spindle servo motor and a spindle encoder according to customer requirements, which can realize thread turning and a constant linear speed cutting function.

High precision adjustable radial clearance double row short cylindrical roller bearing is used for the spindle of the worktable. The constant current static pressure guide rail is adopted in the axial direction, which makes the worktable have the characteristics of high rotation accuracy, large bearing capacity and small thermal deformation.

The base, worktable, bed body, crossbeam and other large parts are made of grey cast iron with high strength and good wear resistance, which eliminates internal stress and does not deform

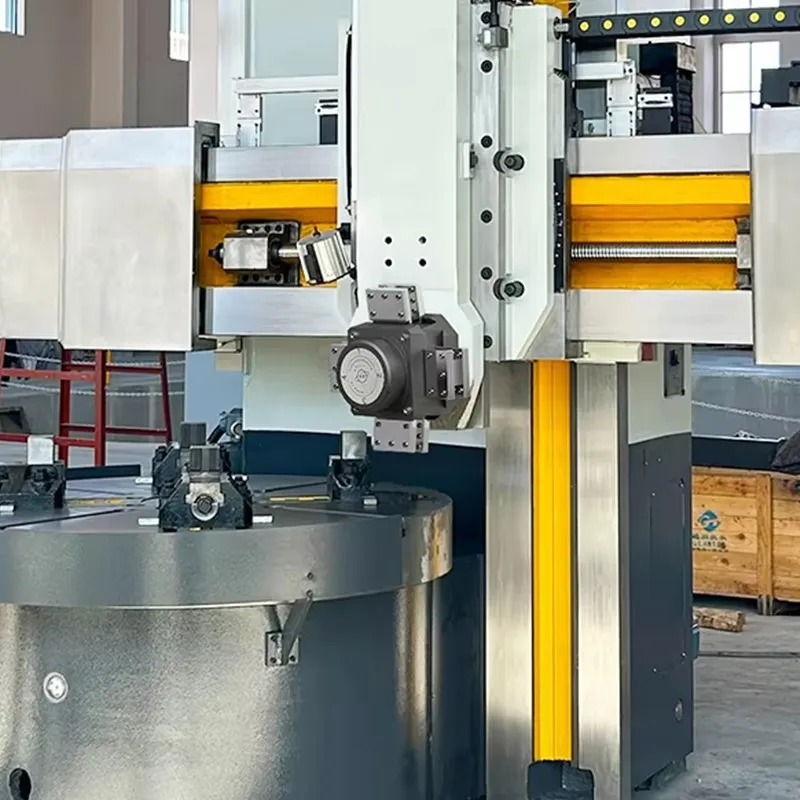

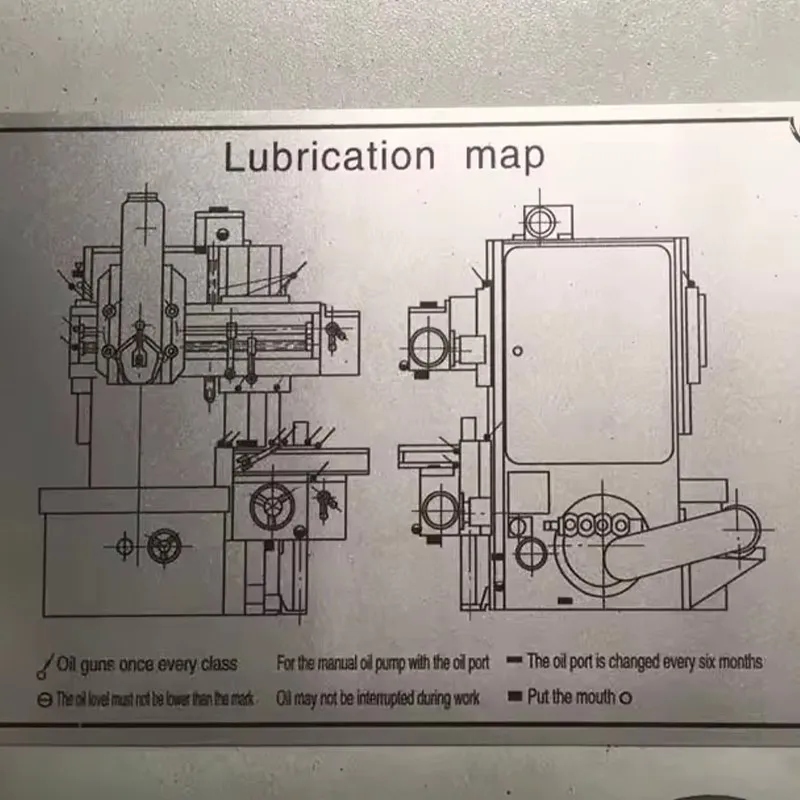

Quenching, grinding and manual grinding are adopted for the guide surface of the bed body, beam and ram, with good contact surface and high precision. Crossbeam with hydraulic ageing locking, large cutting capacity, and no chatter.

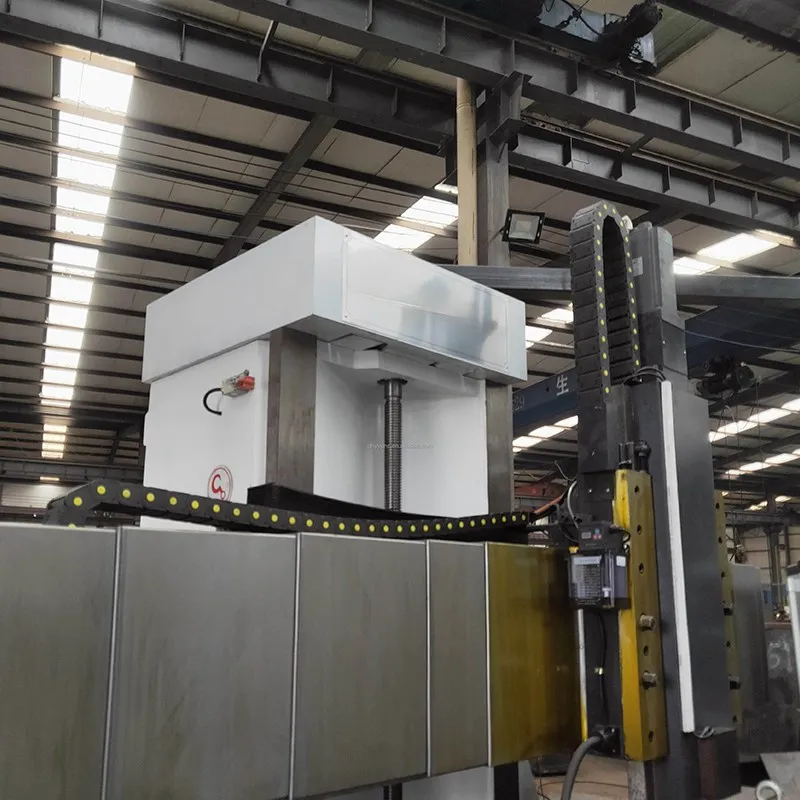

The CNC vertical turning lathe machine is driven by an AC servo motor and a ball screw, and the crossbeam is equipped with a stainless steel cover, which increases the safety and amenity of the machine tool.

The main drive of the CNC vertical turning lathe machine is driven by an AC motor, and the speed range of the worktable is realized through the 16-stage spindle speed changing mechanism.

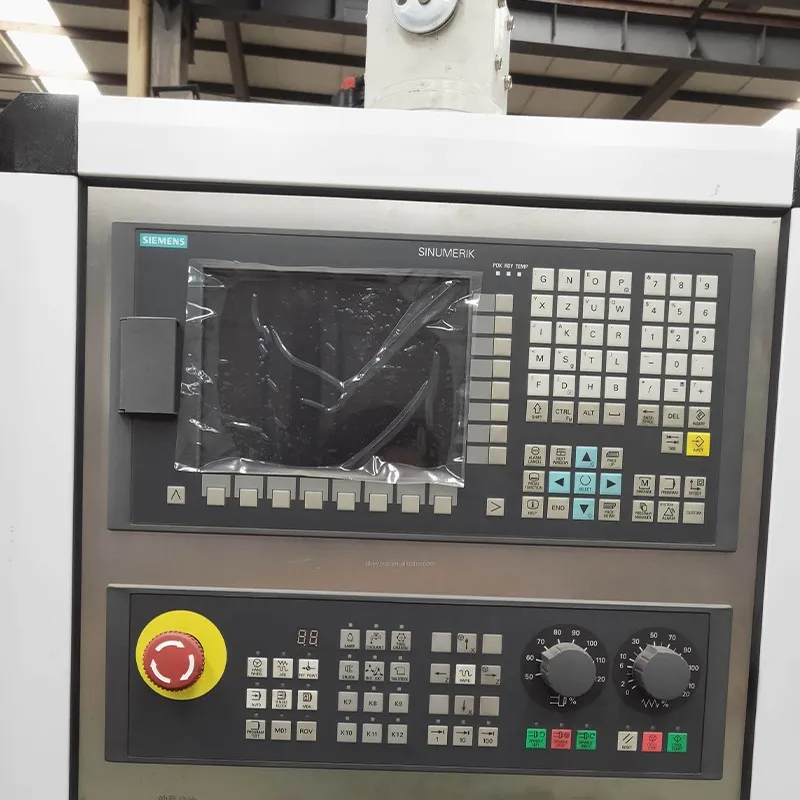

The CNC system can be imported or domestic configuration according to the needs of users.

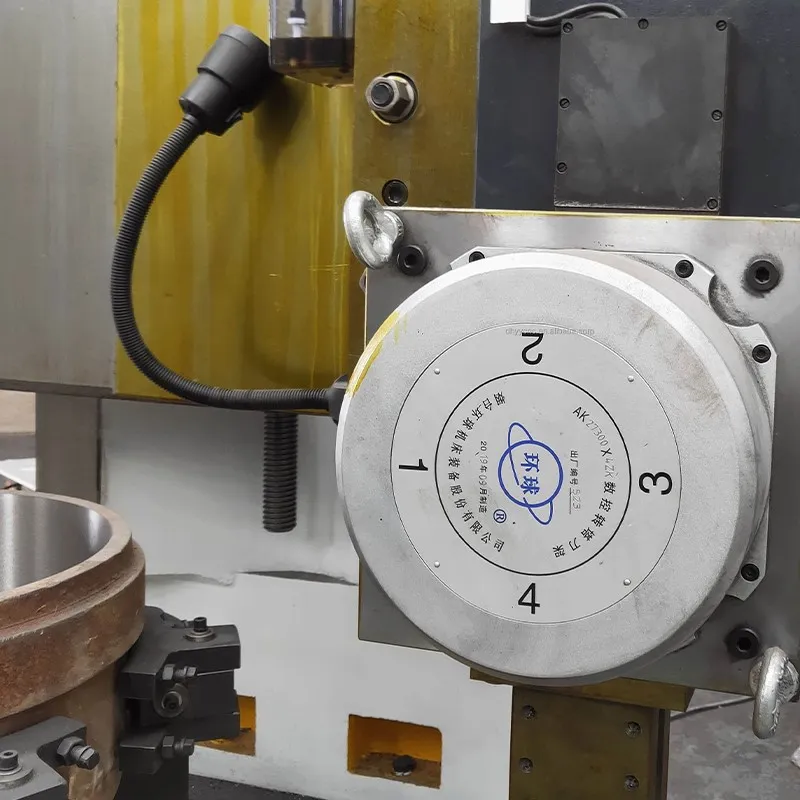

Standard configuration: either square ram or five corner turret. Optional configuration: electric cutter table, semi-enclosed cover, cooling chip removal device and four-speed stepless speed regulation.

Technical Parameters

Specification	Unit	CK5110	CK5112	CK5116	CK5120	CK5123	CK5126
Max.cutting diameter	mm	1000	1250	1600	2000	2300	2600
Table diameter	mm	900	1000	1400	1800	2000	2300
Max.workpiece height	mm	800	1000	1000	1250	1350	1350
Max.workpiece weight	t	2	3.5	5	8	8	10
Max.torque of table	KN.m	20	25	30	40	40	45
Table rotate speed range(4gear stepless)	r/min	8-250	6.2-200	5-160	3.2-100	3.2-80	2.5-63
Max.cutting force of the vertical holder	KN	18	18	22	22	22	22
Range of feed rates (stepless)	mm/min	0-500	0-500	0-500	0-500	0-500	0-500
Horizontal travel of rail head	mm	670	700	915	1050	1180	1600
Ram travel of rail head	mm	650	650	800	800	1000	1000
Fast moving speed of tool heads	mm/min	2300	2300	2300	2300	2300	2300
Beam lift speed	mm/min	440	440	440	440	440	440
Knife rod cross-section size (W.D.)	mm	30x40	30x40	30x40	30x40	30x40	30x40
Main motor power	KW	18.5	22	22/30	30	30	37
Weight of machine	t	8.5	9	12.5	17.5	18.5	21
