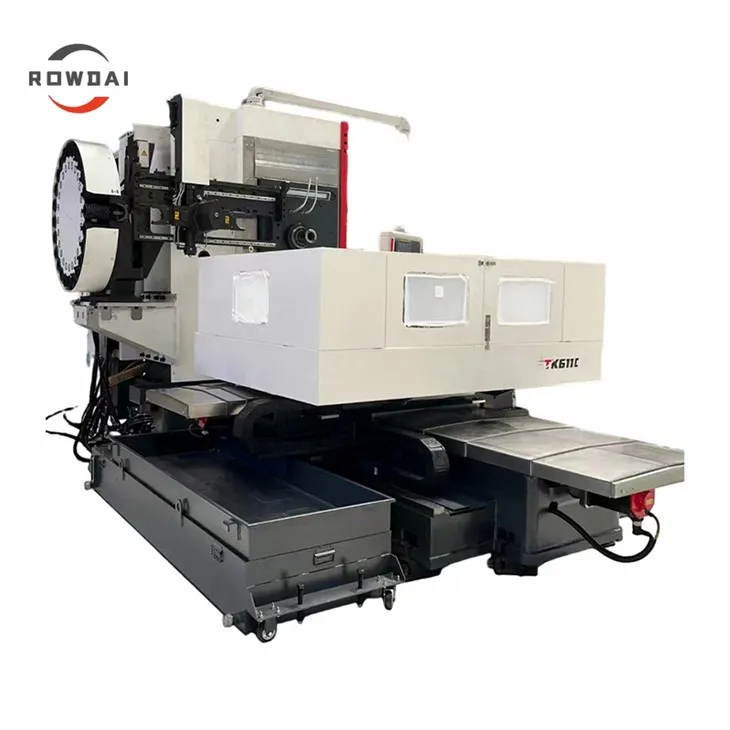

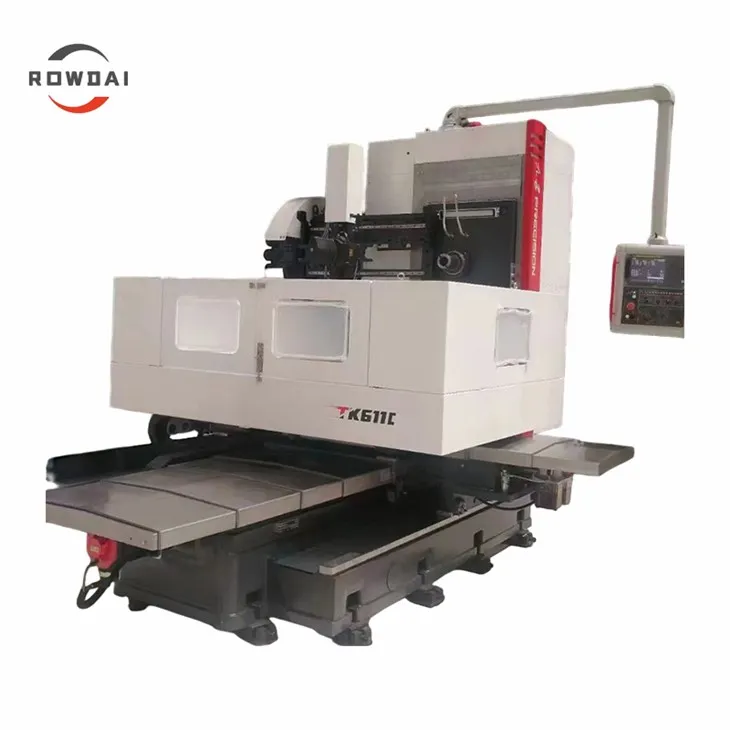

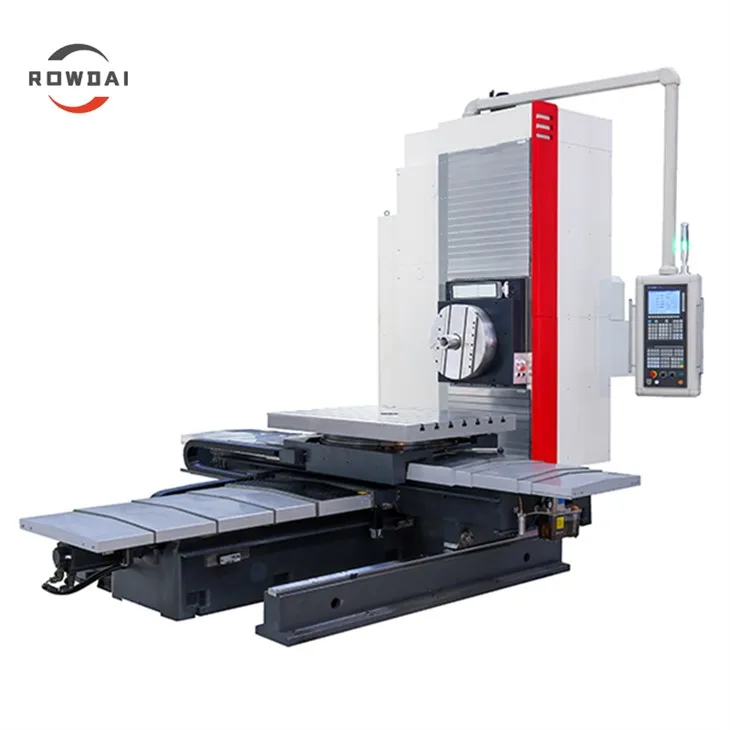

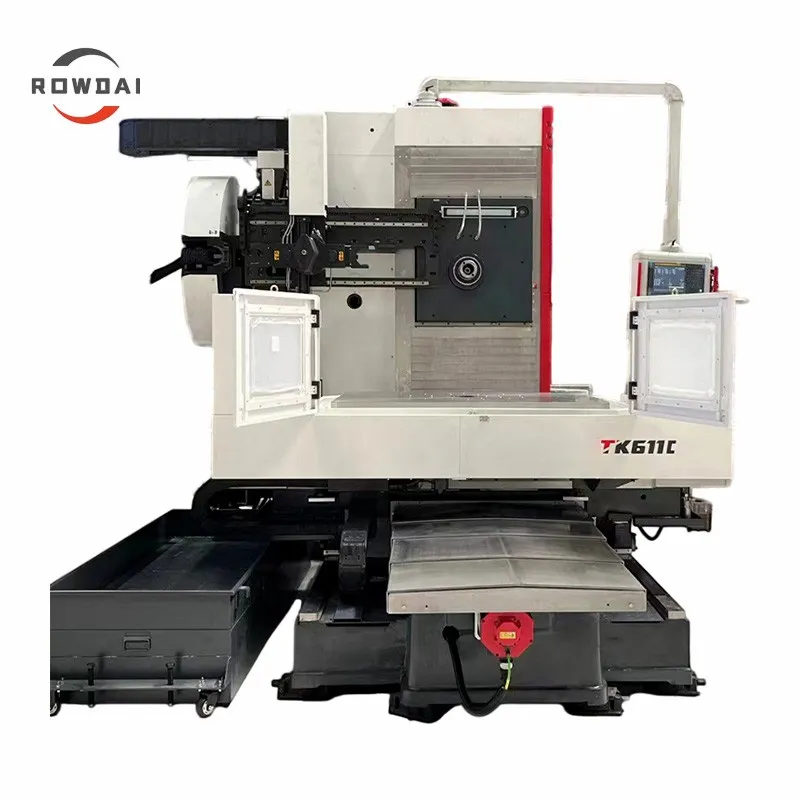

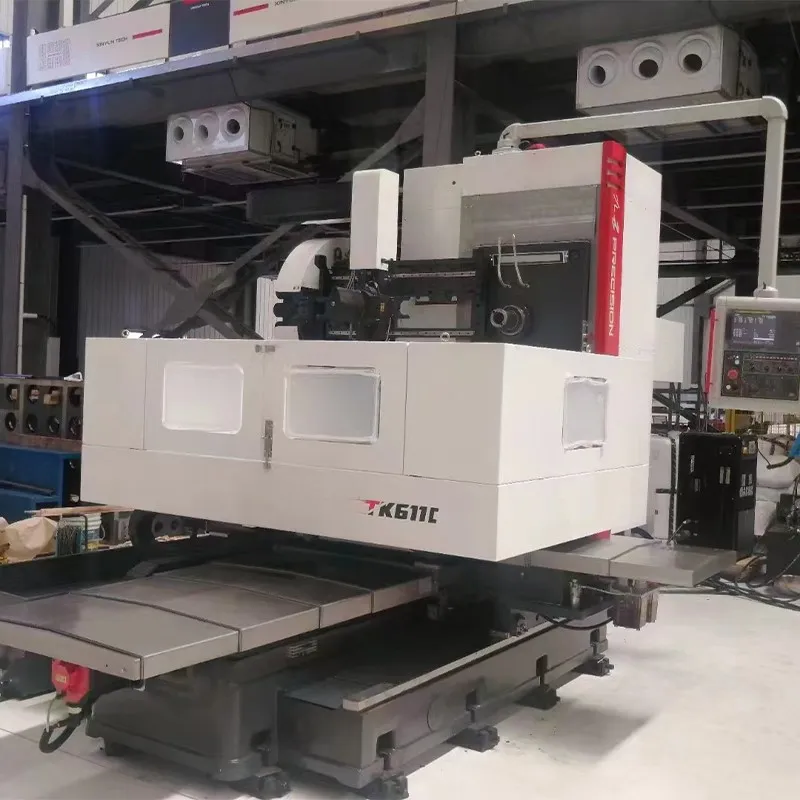

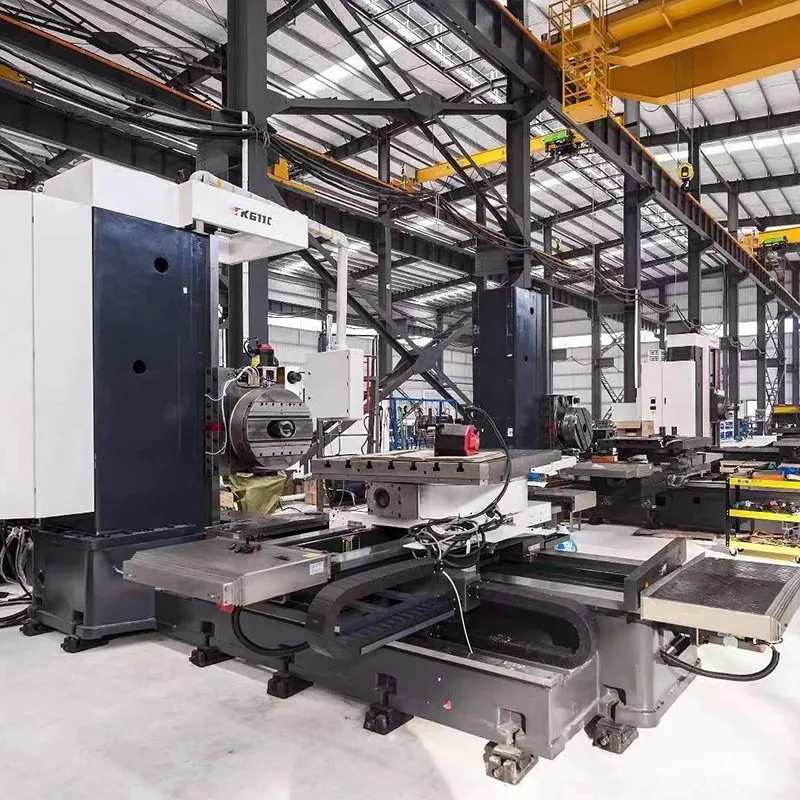

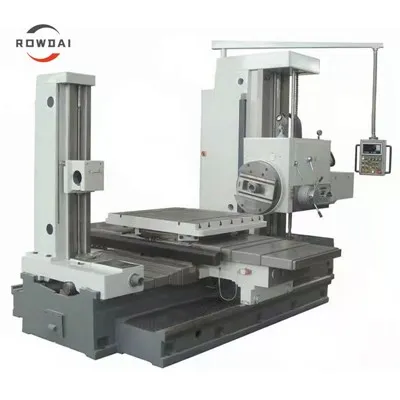

This Horizontal Boring & Milling Machine features a single column, side-mounted housing, and a cross-slide table structure.

The Horizontal Boring & Milling Machine utilizes finite element analysis and a highly rigid, rationally designed layout for its large components. The bed, column, and upper and lower slides all employ rectangular, wide-section, ground guideways with imported PTFE surfaces, meticulously hand-scraped for wear and pressure resistance.

The machine boasts a large transverse travel. The bed is supported by integral, rigid auxiliary guideways on both sides, ensuring full-range support during the table's transverse movement and maintaining excellent precision.

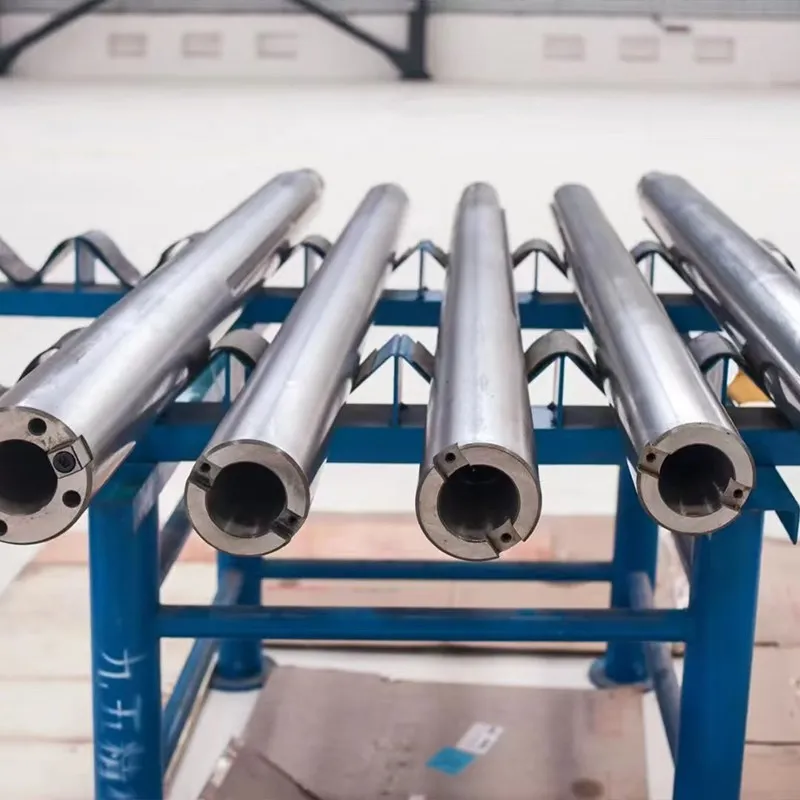

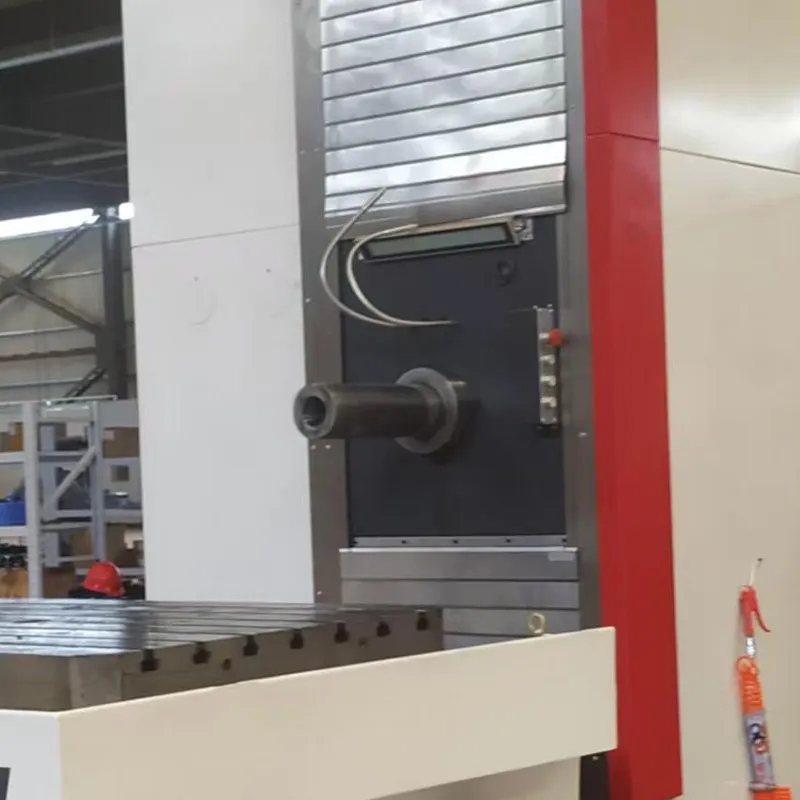

The spindle is constructed from high-strength 38CrMoAl alloy with a high-hardness secondary nitriding treatment. A high-power AC servo spindle motor transmits power to the spindle via gear transmission, resulting in a rigid spindle system capable of heavy-duty cutting and high machining efficiency.

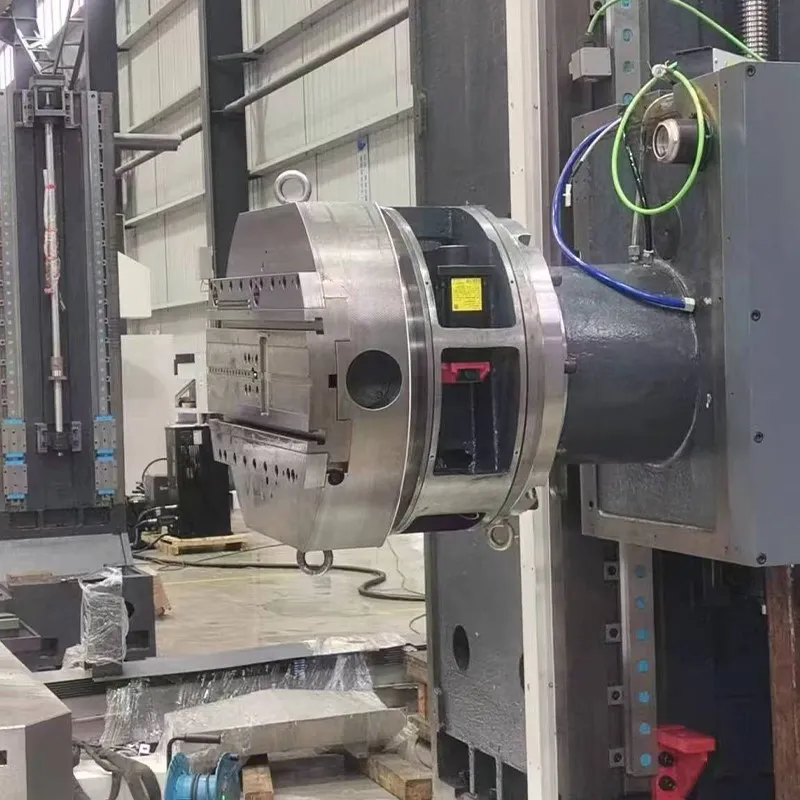

An optional CNC rotary table can be fitted to the end of the spindle box, enabling the boring of larger holes and planes. The feed of the boring spindle and the rotary tool post are independently driven by AC servo motors, enabling interpolation with other coordinate axes.

The X/Y/Z/W/U five-axis feed (the U-axis of the rotary tool post is optional) uses imported ball screw transmission, enabling three-axis or four-axis linkage, linear and circular interpolation functions.

The worktable adopts a manual four-point single-pin positioning structure, which is simple, reliable, and accurate. A CNC rotary table is also available as an option for higher automation.

This Horizontal Boring & Milling Machine is suitable for high-speed, high-efficiency machining of box-type, plate-type, mold-type, and gear-type parts, and is applied in the valve and pump industry, hydraulic power machinery, automobile manufacturing, mining machinery, rail transportation, and other engineering machinery industries.

Technical Parameters

Item	Unit	TK611C	TK6411C	TK6513
Boring spindle dia.	Mm	110	130	130
Working table(L*W)	Mm	1320*1010	1350*1000	1600*1400
Max. Loading	Kg	5000	5000	8000
Horizontal travel (X axis)	Mm	1200	1600	2200
Spindle vertical travel (Y axis)	Mm	1200	1200	1600
Column longitudinal travel (Z axis)	Mm	1300	1200	1400
Axial stroke of boring shaft (W axis)	Mm	550	550	550
Distance from boring shaft center to table	Mm	0-1200	0-1200	80～1680 mm
Spindle motor	Kw	15	18.5/22	22
Spindle speed	Rpm	0-1100	12-1500	2300
Boring shaft inner hole taper	--	BT50	BT50	BT50
Rapid feed rate：X / Y / Z axis	m/min	10/10/10	10/10/10	15/15/15
Rapid feed rate W axis	m/min	5	5	5
Positioning accuracy X/Y/Z axis	Mm	0.03	0.030	0.02/0.02/0.02
Positioning accuracy W axis	Mm	0.025	0.030	0.02
Repeated positioning accuracy X/Y/Z axis	Mm	0.02	0.020	0.015/0.015/0.015
Repeated positioning accuracy W axis	Mm	0.02	0.015	0.015
Weight	Kg	13000	19000	23000
