Products Description

This machine tool is a CNC horizontal lathe with vertical (Z) and horizontal (X) coordinate control. It has the characteristics of wide processing range, high rigidity, high precision, high speed, high efficiency, high reliability, and high torque. It can automatically complete cutting processes such as inner and outer cylindrical surfaces, conical surfaces, circular arc surfaces, end surfaces, groove cutting, chamfering, etc. for various shaft and disc parts, and can turn various turning processes such as metric and imperial straight threads, tapered threads, and end surface threads. Suitable for the production of multiple varieties, small and medium batch products, especially for complex and high-precision parts, demonstrating superiority. Using this machine tool can save process equipment, shorten production preparation cycles, ensure part processing quality, and improve production efficiency. It is your ideal choice to create more wealth!

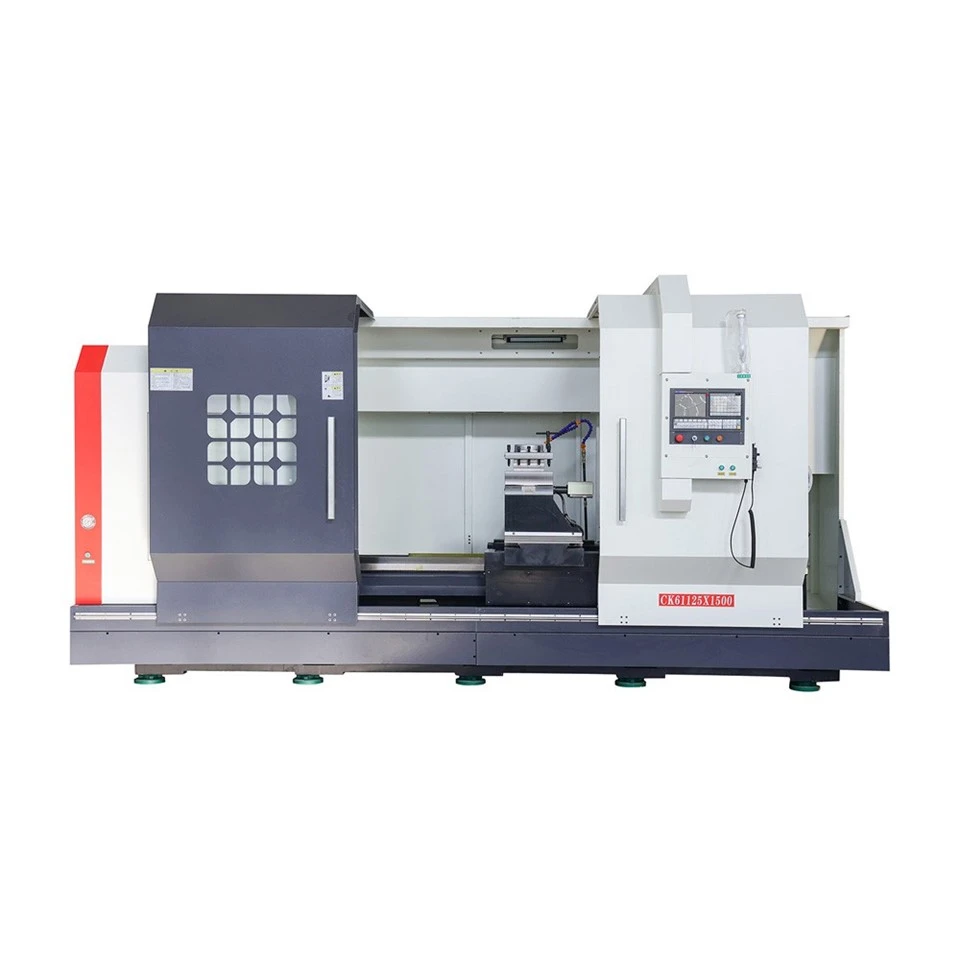

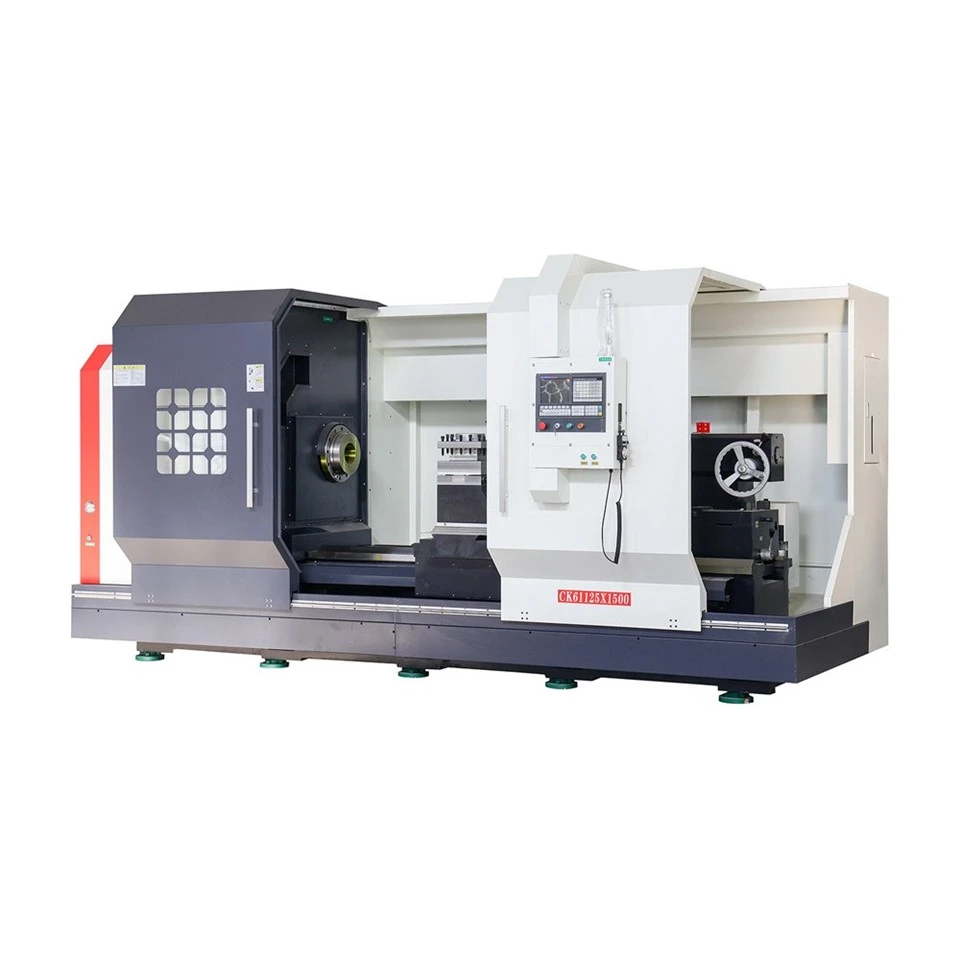

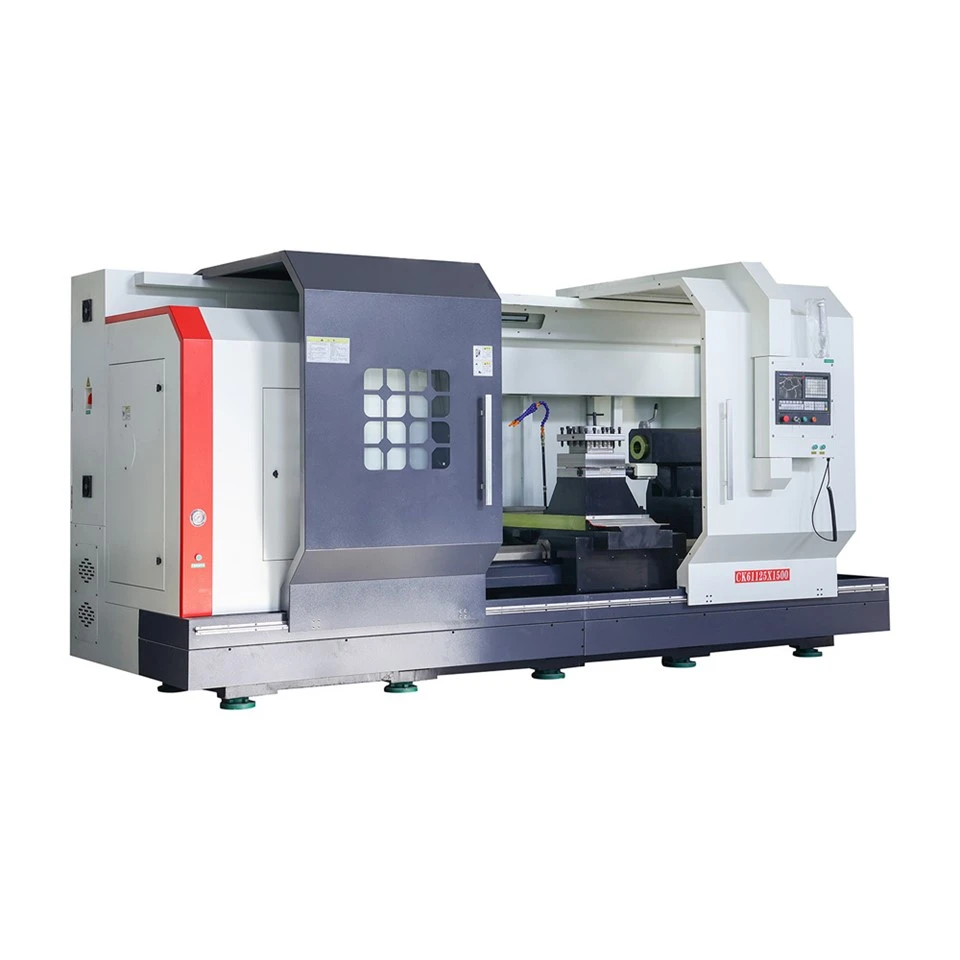

CNC lathe

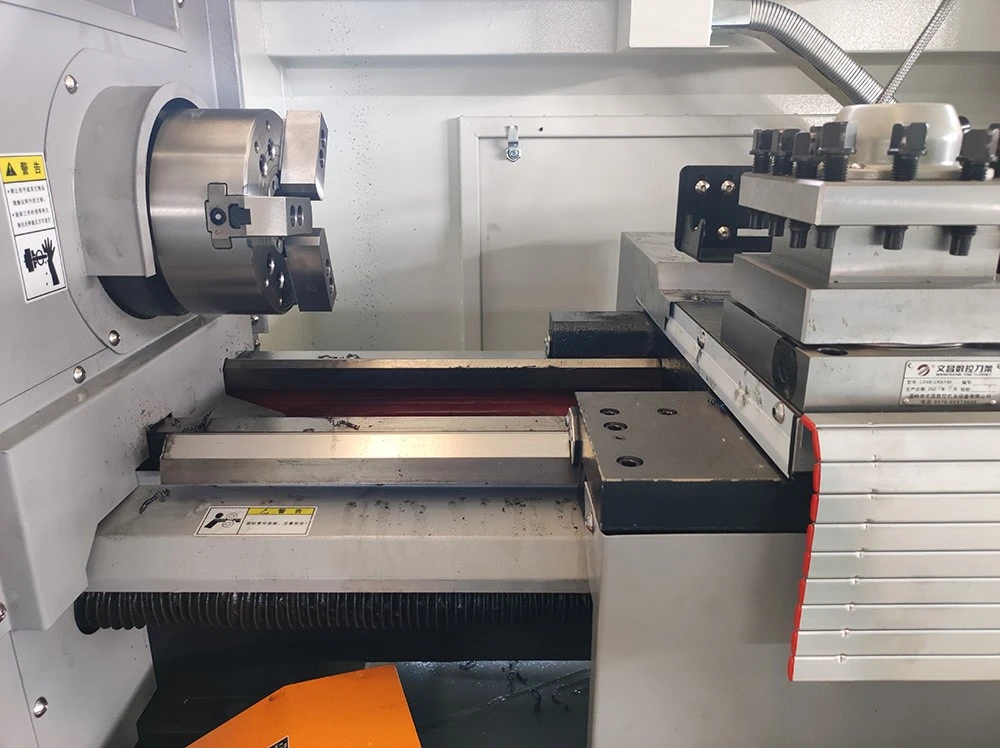

lathe machine

Technical Parameters

Item	Speicification	CNC61125
Capacity	Max swing overbed	1250mm
	Max.swing over slide	850mm
	Bed width	755mm
	Max.workpiece length	1500/2000/3000/4000/5000mm
Spindle	Spindle transmission form	Spindle infinitely variable speed
	Maximum spindle speed	20-1200r/min
	Dia of spindle bore	130mm
	Spindle taper	MT6
	Sping nose type	ISO-A2-11
	X-axis rapid traverse	8m/min
	Z-axis rapid traverse	10m/min
	X-axis rapid traverse	700mm
	Z-axis rapid traverse	1500/2000/3000/4000/5000mm
Acurracy	Positioning accuracy	0.005mm
Acurracy	Repeat positon accuracy	0.01mm
Chuck	Chuck type	Manual chuck (standard)
	Chuck type	3 jaw hollow Hydarulic chuck (optional)
	Chuck size	500MM
Tailstock	Type	Manual tailstock(standard)
	Sleeve diameter	120mm
	Sleeve travel	250mm
	Sleeve taper	MT6
Tool	Tool post/turret	Four station electric turret(standard)
	Tool post/turret	8 station electrical turret(optional)
	Shank size	40*40mm
Other	Min setting unit	X axis:0.001mm, Z axis:0.001mm
	Spindle motor power	15KW frequency main motor
	Dimension(LWH)	5200/5700/6700/7700/870022002300mm
	Weight	5600/6200/7500/8600/10000kg

Product Name		High precision fully automatic CK61125 CNC lathe
Type		61125
Brand		Southern First
Material		Steel, electronic instruments
Function		metal turning
control system		SIEMENS GSK KND FANUC MITSUBISHI(optional)
Usage		Metal Processing

Factory Description

lathe

FAQ

Q: What is the minimum order quantity (MOQ)?

A: MOQ is one set. (Only some low cost machines will be more than 1 set)

Q: How can I choose the most suitable machines?

A:Please tell us your requirement of the machine, or you can also send us the products drawing, then we will give you the best solutions.

Q: What's the Payment Terms?

A: 30% by T/T as deposit, 70% balance by T/T before delivery. As for other payment terms, we can discuss.

Q: Where is your factory located?

A: Our factory is located in Tengzhou, Shandong province, China.

Q: What's the mainproducts of your company?

A: We specialized in many kinds of machines, such as CNC machining centers, CNC milling ma-chines, CNClathes, milling machines lathe machines, drilling machines, sawing machines, etc.

Q: What is your market advantage?

A: We provide not only machine tools, but one-stop solutions for machine tools. If there is anyproblem with the equipment, we cango abroad for after-sales service.

Q: What is the package? Is it suitable for shipment?

A:Machines will be packed by exporting standard package, with water proof, anti-rust and fumiga-tion-free. It is very strong foroversea transportation.
