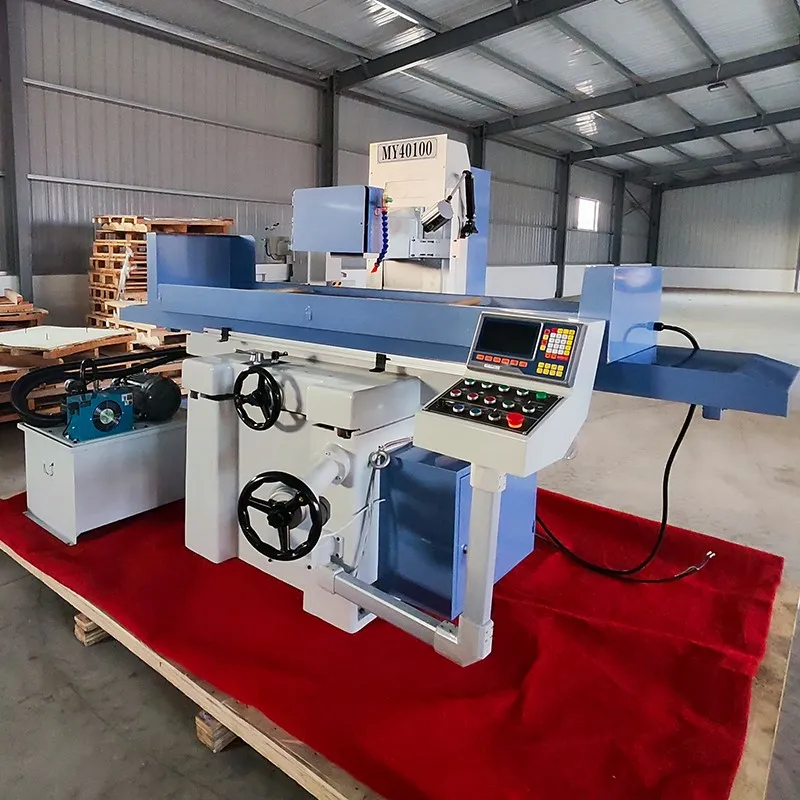

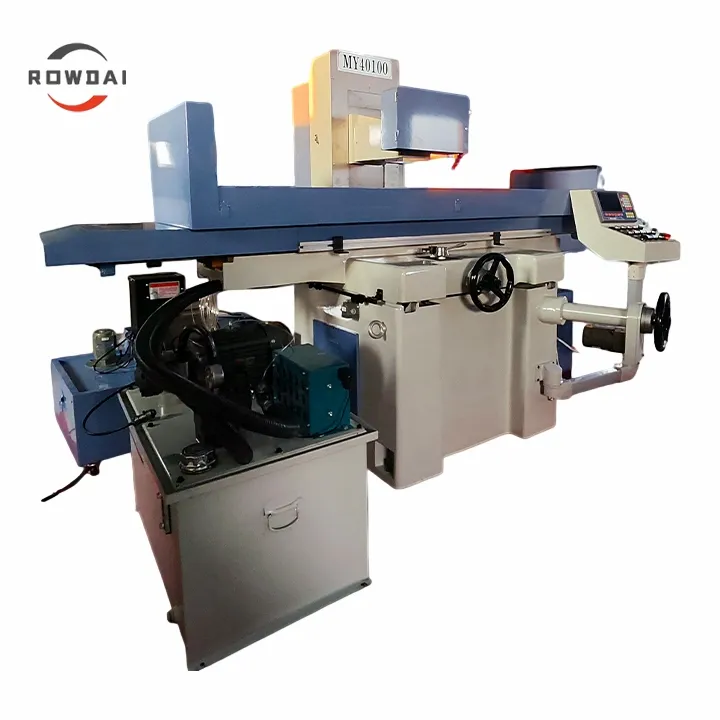

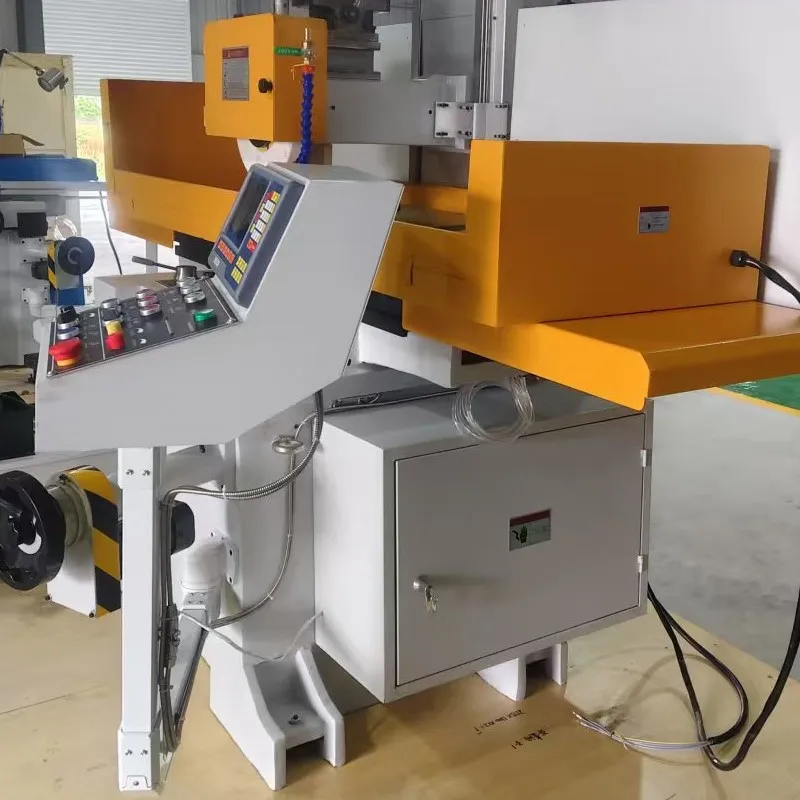

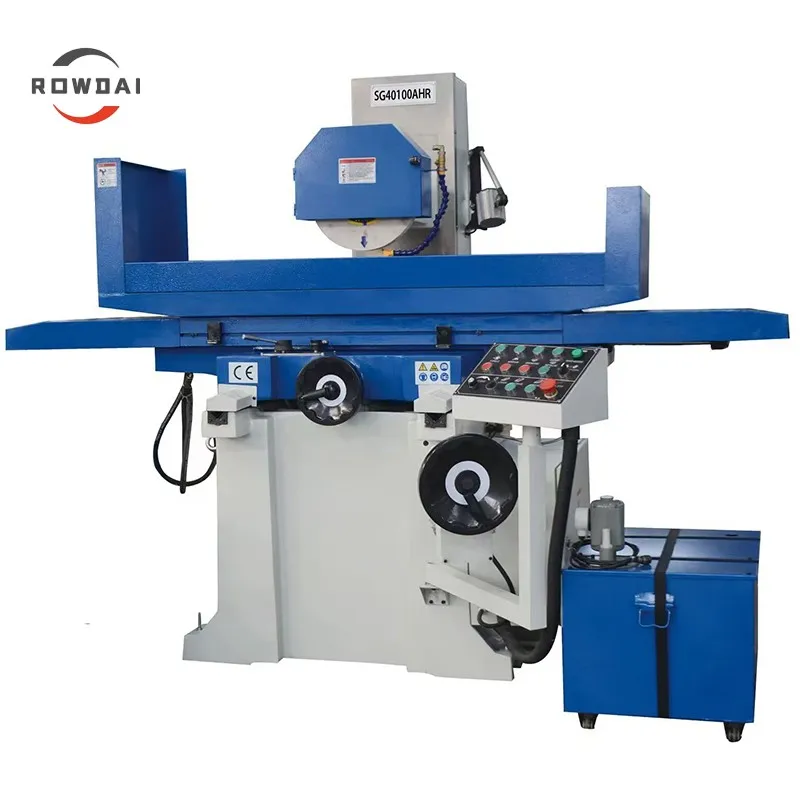

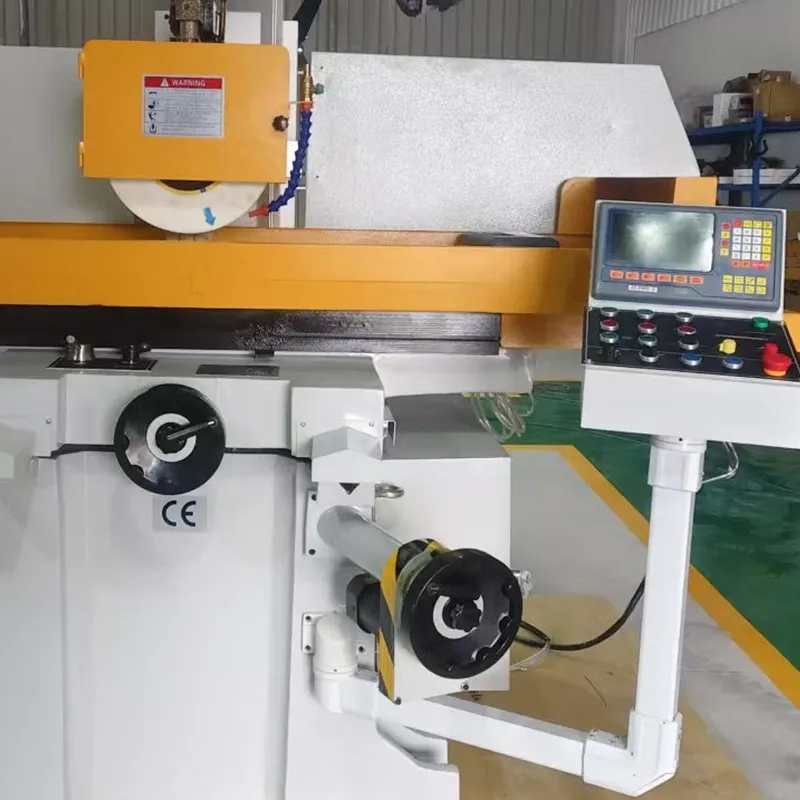

This flat surface grinding machine is designed for the surface grinding of parts and is capable of fulfilling a wide range of grinding requirements, including high-precision grinding and heavy-stock removal. The machine is suitable for processing parts made from materials such as alloy steel, stainless steel, and cast iron. It features stable precision and high reliability, characterized by a sound structural design that ensures ample static, dynamic, and thermal rigidity. The machine tool demonstrates excellent precision retention and incorporates advanced technologies to ensure that all system levels exhibit superior dynamic performance. The selected system actuators are distinguished by their high precision, reliability, and rapid response speeds. Furthermore, the machine is designed for ease of use, operation, and maintenance, and features an aesthetically pleasing appearance.

Features

The flat surface grinding machine bed and worktable are constructed from high-quality, wear-resistant cast iron and feature a monolithic casting design. Utilizing specialized 3D analysis software, the components underwent rigorous stress analysis to ensure optimal dimensions and a rational structural layout, thereby guaranteeing a balanced distribution of forces. Furthermore, the castings were subjected to a dual-stage vibration aging process to minimize residual stress following machining.

The structure of the flat surface grinding machine grinding head spindle is a critical component of the grinding machine, directly influencing grinding precision, surface roughness, waviness, and grinding efficiency. The grinding head structure on this machine tool utilizes a hydrodynamic-hydrostatic bearing design.

a. The horizontal grinding head, featuring a hydrodynamic-hydrostatic bearing structure, offers numerous advantages, including high rotational precision, high load-bearing capacity, excellent vibration resistance, and a long service life.

b. The grinding head is equipped with an independent oil supply system. This system incorporates an oil cooling device to regulate the temperature rise of the spindle's lubricating oil, thereby ensuring the rotational precision of the spindle. Furthermore, the system employs multiple protective measures-including a two-stage precision oil filtration system, low oil pressure protection, and an accumulator-to safeguard the spindle.

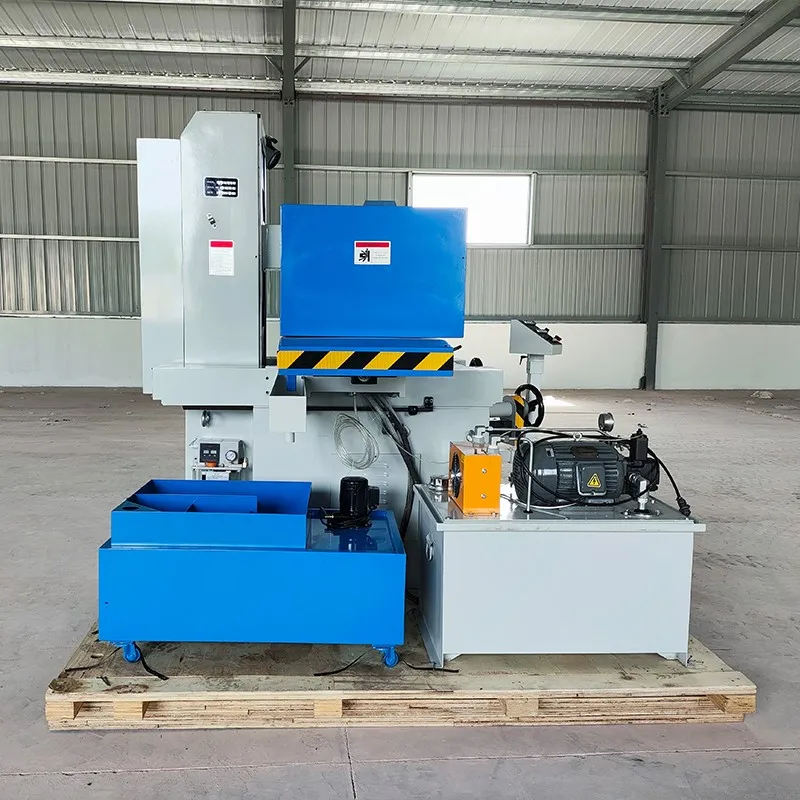

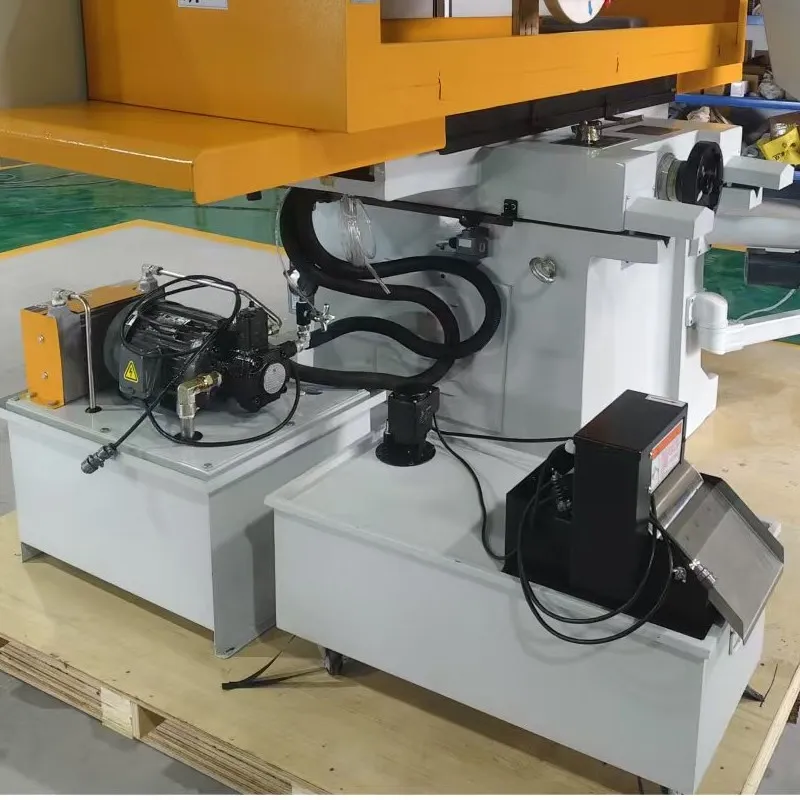

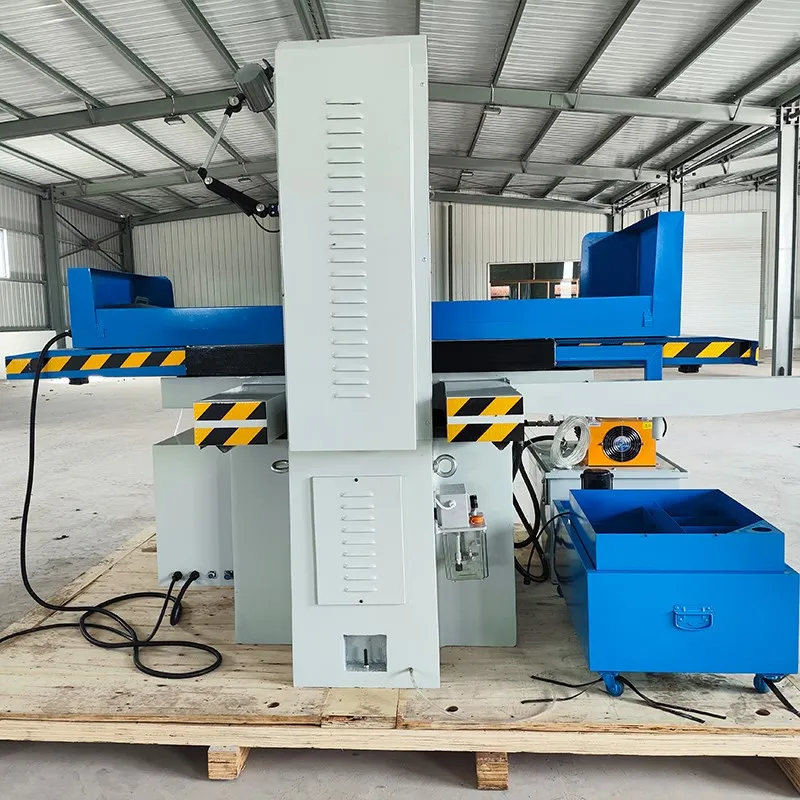

The flat surface grinding machine is driven by an independent hydraulic station, the system features stepless speed regulation, ensuring smooth operation and convenient handling. The hydraulic station is equipped with an air-cooling device, resulting in minimal temperature rise within the system oil.

Technical Parameters

Specification	Unit	MY40100
Table size(L×W)	mm	1000×400
Max. Grinding Length	mm	1050
Max. Grinding width	mm	420
Distance from table surface to spindle center	mm	570
Slide way		One flat rail one V rail
Maximum work load	kg	500
Table size (L×W)	mm	1000×400
Number of T-slot	mm×n	14×3
Speed of working table	m/min	7-16
Cross feed on handwheel	mm	0.02
Vertical feed on handwheel	mm	0.01
Wheel size (dia.×width×bore)	mm	Ф350×40×Ф127
Spindle speeds	rpm	1450
Spindle motor	kw	5.5
The machined surface of the base of parallelism	mm	300:0.005
Surface roughness	μm	Ra0.63
Cross feed motor of table	kw	0.06
Minimum of numerical	L/min	120
Coolant pump	kw	0.09
Packing size(L×W×H)	mm	265021502170
Weight	Kg	2600
