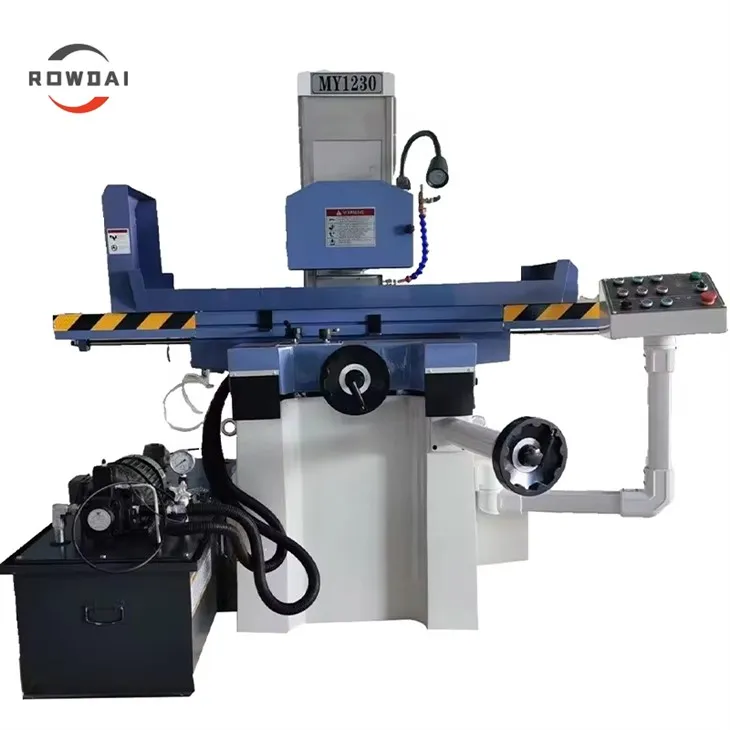

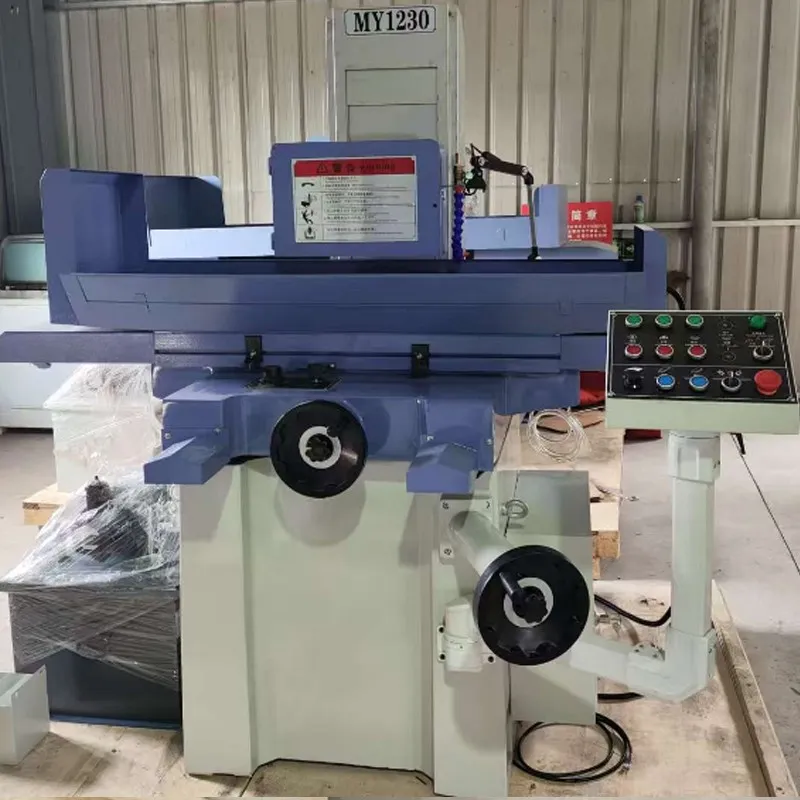

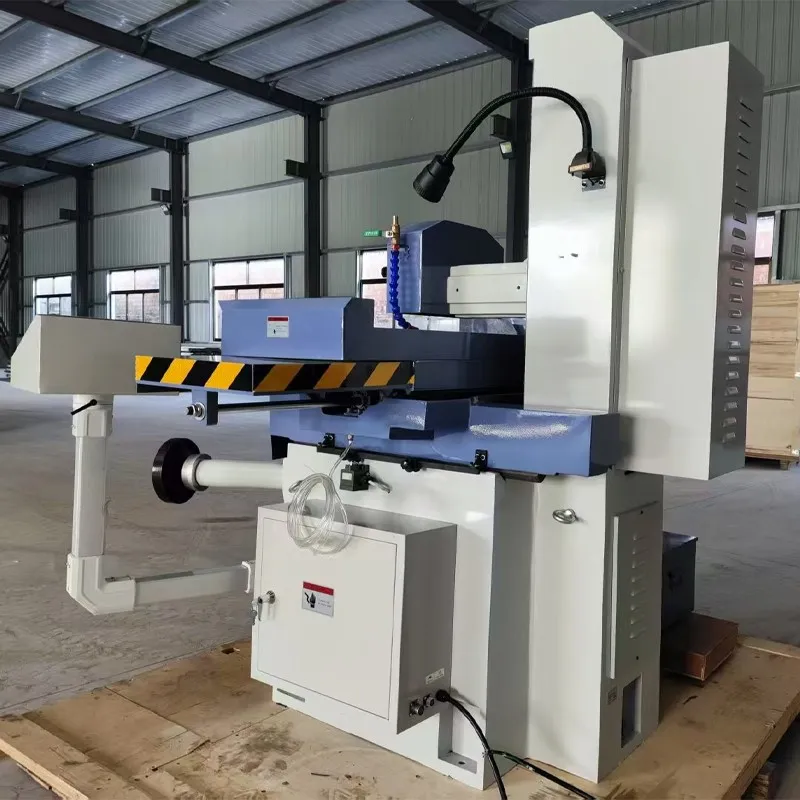

Characteristics

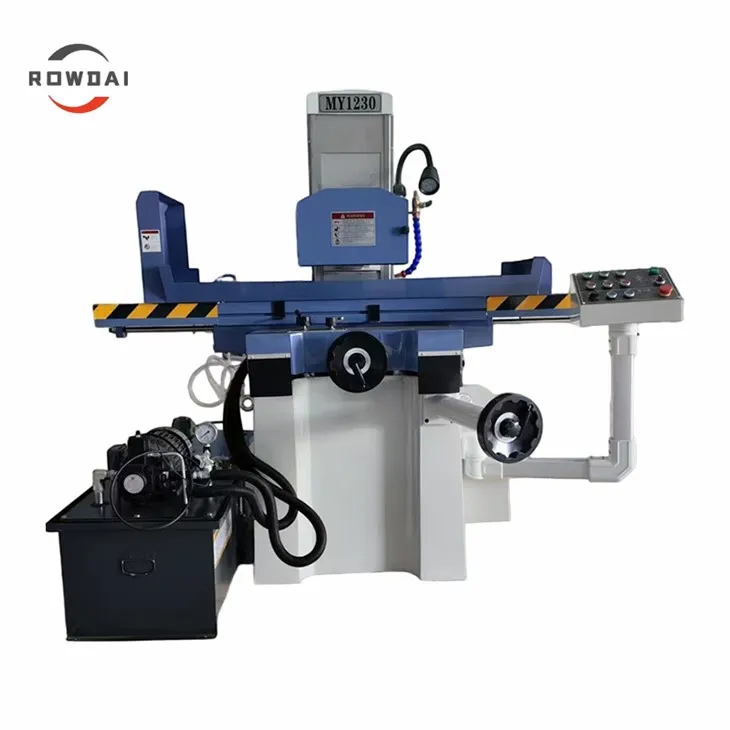

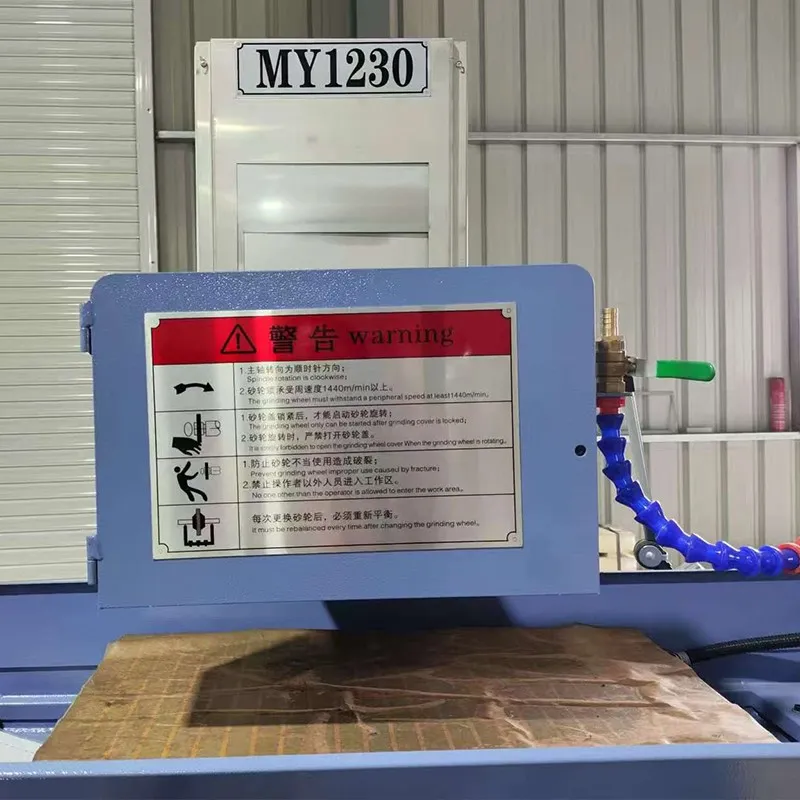

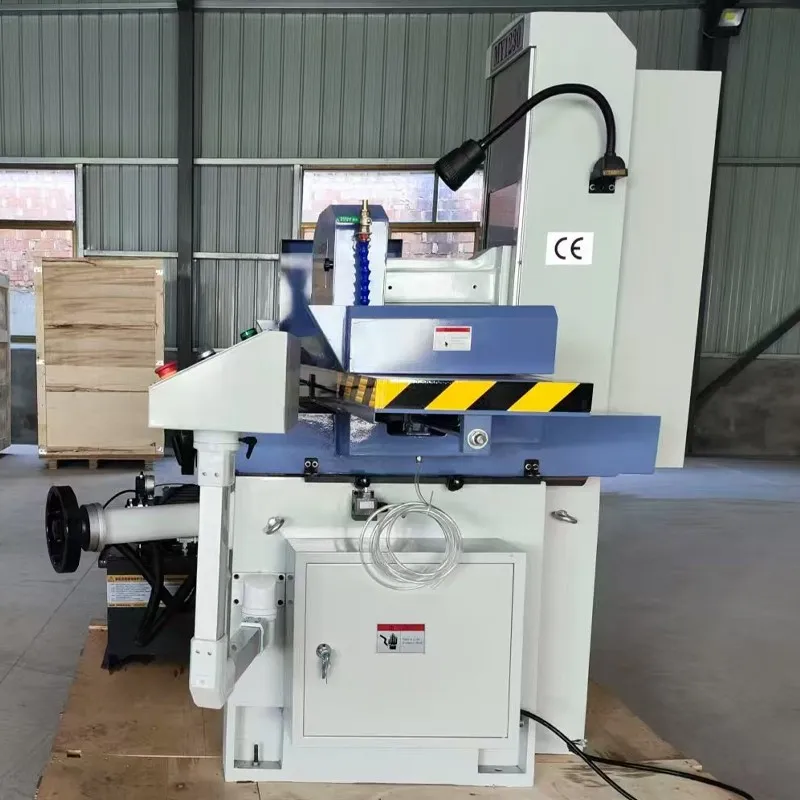

The hydraulic surface grinding machine is reasonable in structure,good rigidity,beautiful appearance,convenient operation.Using precision plastic guide surface and precision scraping,grinding imported hydraulic transmission,drive by synchronous.

The main mechanical valve is a special valve grinder,is divided into two parts,the mechanical commutation control,throttle control. Throttle control part and unloading function can realize the station start and stop.

The hydraulic surface grinding machine is suitable for grinding all kinds of plane and complex shaped surface, according to user needs with a permanent magnet sucker or electromagnetic sucker.

Technical Parameters

Model				MY1230
Bench	Max table surfacing size (L×W×H)		mm	700×300
	Max stroke (L × W)		mm	750×320
	Table maximum cutting area (L × W)		mm	700×300
	Number of T -Slot		mm	1×14
The grinding head	Distance From Table Surface To Spindle Center		mm	500
	Wheel Size(dia×width×bore)		mm	Ø350×32×ø127
	Spindle speeds		r/min	1440
The amount of feed	Table longitudinal running speed (stepless)		m/min	3--20
	Table horizontal (front and back) the amount of feed	Continuous (variable speed)	mm/min	150
		Intermittent (stepless)	mm/time	0-5
		The handwheel rotates	mm	4
		Hand wheel each grid	mm	0.02
	Vertical (up and down) wheel feed	The handwheel rotates	mm	4
		Hand wheel each grid	mm	0.01
Motor power	Spindle motor		kw	4
	Cooling motor		w	40

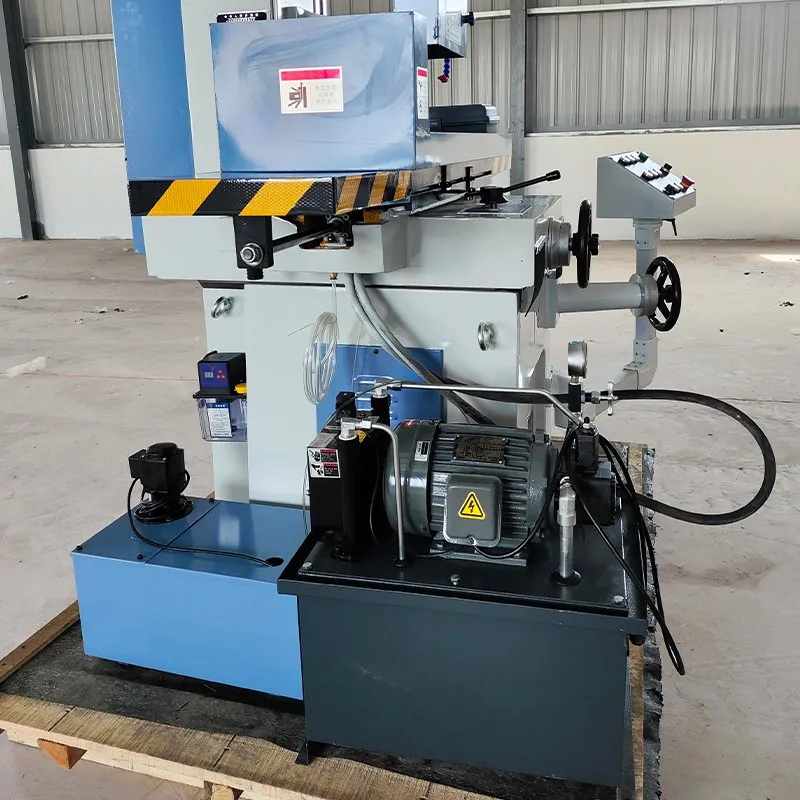

Hydraulic system	Hydraulic motor		kw	1.5
	Working Pressure		Mpa	2.5
	Oil tark capacity		L	80
	Max. Capacity		L/min	18
Working precision	The machined surface of the base of parallelism		mm	300/0.005
	Surface Roughness		μm	Ra0.32
Weight of machine	Net		T	1.4
	Cross		T	1.5
Machine Size (L×W×H)			mm	1900×1520×2020

Standard Accessories

Coolant tank
Balancing arbor
Wheel flange
Wheel extractor
Leveling wedge and bolt
Tool box and tools
Standard grinding wheel
Working lamp
Wheel dresser stand
Diamond pen

Operational Precautions

A surface grinder is an assembly of numerous components. During the manufacturing process, it is essential to ensure that the rotational direction of the lapping bar aligns with the operational rotational direction of the grinding wheel spindle. This alignment facilitates the rapid flow of self-priming oil through the radial clearance during operation, thereby forming an oil wedge; this, in turn, improves operational performance and helps prevent deviations in the manufactured products.

During the lapping process on a surface grinder, attention must be paid to the following four points:

1. Throughout the lapping process, continuously and gradually tighten the front and rear bearings (maintaining a consistent tactile feel) to enhance lapping efficiency and ensure the geometric precision of the bearings.

2. Promptly remove any excess lapping compound from the ends of the bearings to prevent the front and rear bearings from developing a "flared" or bell-mouthed profile.

3. During the final stage of lapping, use the minimum amount of lapping compound possible and appropriately tighten the front and rear bearings to ensure their ultimate geometric precision.

4. After lapping for a specific duration, withdraw the lapping bar and remove all lapping compound from both the bar and the front and rear bearings. Inspect the lapping results and check the lapping bar for any signs of wear; if wear is detected on the bar, it must be trued (dressed) to ensure the dimensional consistency of the front and rear bearing bores.

5. Every piece of equipment requires specific precautions during the manufacturing process, and the surface grinder is no exception. Only by strictly observing the four points outlined above during surface grinding operations can the full production potential of the machine be realized, thereby ensuring the manufacture of qualified products.
